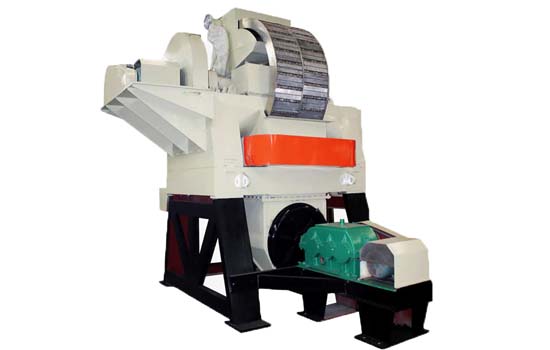

High Gradient Magnetic Separator magnetic system is made from high-quality ferrite magnetic materials or synthetic materials of rare earth and magnet steel.



It mainly consists of sorting ring, sealing system, driven system support and positioned wheel-set.The "magnetic linkage" or" magnetic group" rotates with the cylinder, non-magnetic ores which locate between them fall down.The magnetic minerals will absorb on the surface of the medium.And then be sent into non-magnetic field by swivel, then be flushed into concentrated ore bucket, and the non-magnetic particles will discharge from the tailings along the gap.

On the High Gradient Magnetic Separator shell surface, the average magnet intensity reaches 100-600mt.Yufchina can provide different types of magnetic separator according to the needs of customers, such as concurrent type, counter-current type and counter-rotation type.

Yufeng High Gradient Magnetic Separator applies vertical rotation, back-flush device, and high-frequency vibration, so it has thoroughly solved the worldwide problem existing among horizontal-ring magnetic separators.It has a large enriched ratio, a strong adaptability to the feeding size, concentration and taste, reliable, convenient to operate and maintain.This High Gradient Magnetic Separator has the capacity of high concentrate grade and high yield in separating weakly magnetic ores.
