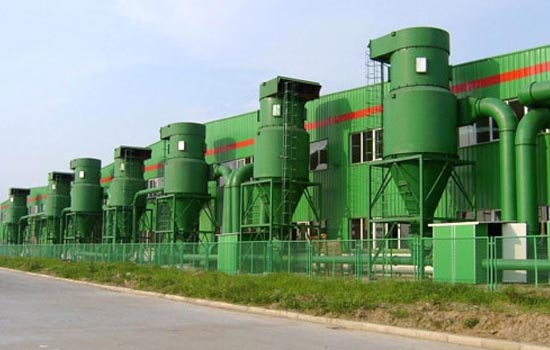

Cyclone Dust Catcher Cyclone, is the bypass chamber cyclone dust collector.According to the installation location, installation form is divided into two kinds of left circumflex and right swing.Cyclone dust collector is a kind of dust removal device.

The cyclone dust collector for the mechanical processing, metallurgy, building materials, the dust of mining, the rough purification.Cyclone, into the cylinder, cone under the two parts.Dust and dust into the air through the mouth, cutting into the bypass chamber to the greater pressure, downstream into the cylinder, Huge cyclone, the centrifugal dust particles down into the cone, the net gas into the atmosphere through the exhaust pipe.


Working principle of cyclone dust collector

Cyclones use centrifugal force to separate particulate out of the airstream. There are no moving parts inside a cyclone body and no filter media.

Air and particulate enter the inlet at a high velocity along the inner wall at the top of the cylindrical cyclone body.This starts a spinning path as inertia forces the particulate against the inner wall, resulting in a relatively clean area in the center.

This clean air is exhausted through an outlet chamber that starts in the center of the cyclone and exits out the top.As gravity starts pulling the spinning particulate down, the taper of the cyclone body helps keep the spinning (cyclonic) effect in motion until it drops out the bottom of the cyclone body and into a hopper.

Typically, air is pulled through the cyclone from a fan located downstream of the cyclone, but it can be pushed through as well.

Yufchina Cyclone Dust Catcher cyclone design makes it suitable for extremely high concentrations of particulate.Efficiency increases with larger (coarse) particles.So does a decrease in cyclone diameter.Two smaller cyclones running in parallel have a higher efficiency than one larger cyclone with an equal pressure drop.

Classification of cyclone dust collector

-- High efficiency cyclone dust collector, the smaller diameter of the cylinder, used to separate the fine dust, dust removal efficiency of more than 95%;

-- Large flow cyclone dust collector, the larger tube diameter, used to deal with a lot of gas flow, the dust removal efficiency of 50-80%;

-- Universal type cyclone dust collector, the treatment of moderate air flow, due to the different structure form, dust removal efficiency fluctuation between 70-85%;

-- Explosion proof type cyclone dust collector, with explosion-proof valve itself, with explosion-proof function;

According to the structure, the structure can be divided into long cone, cylinder body, diffusion type, and bypass type.

According to the combination, the installation is divided into inner cyclone dust collector, outside cyclone dust collector, vertical and horizontal and single cylinder and multi tube cyclone dust collector.
