Copper-molybdenum ore beneficiation process

Copper molybdenum ore was shipped from the stope ore into the reservoir after primary crushing first reactor, and then into the semi-autogenous grinding ball mill, semi-autogenous grinding ball mill row of ore fed into vibration sieve, sieve product sent to the crusher, crushing re-enteringsemi-autogenous grinding ball mill.

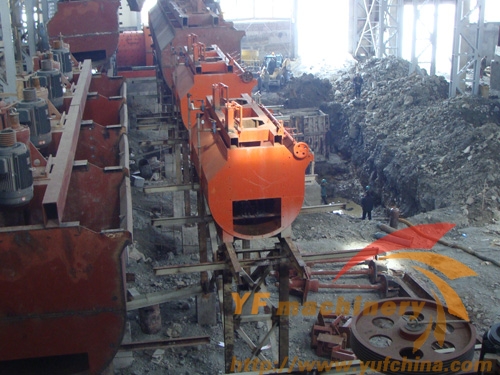

Copper-molybdenum flotation workshop

The copper molybdenum crude scavenger tailings was sent to the tailings pond.The copper molybdenum flotation foam products was sent to the hydrocyclone and bottom stream to regrinding ball mill for regrinding, regrinding row ore to hydrocyclone forming closed-circuit job.Hydrocyclone overflow into the flotation column the column flotation tailings re-election after the flotation machine, the flotation machine tailings and then returned to the hydrocyclone, the column flotation foam products by the thickener off drugs dehydration, and then into the flotation machine for copper-molybdenum separation inhibitors, flotation machine for copper sulfide ore using sodium hydrosulfide sealed flotation machine.

Undoubtedly sealed flotation machine can be maintained without hydrogen sulfide odor copper-molybdenum separation plant, greatly improve the workshop environment, this is the first of its kind in the world, is also very humane.As we all know, sodium hydrosulfide was widely used in the election molybdenum plant, but dispensing with flotation workshop smell unpleasant.

Copper-molybdenum separation tailings is copper concentrate smelting of copper concentrate send copper smelter, was after a thickener and filter press processing.Copper-molybdenum separation bubble and then by the flotation column selection, column flotation tailings return to the thickener dehydration off the drug, column flotation foam into dense concentrated and the filter press to be molybdenum concentrate, dried,packaging factory.

Copper-molybdenum ore crushing plant

Crushing plant equipment includes grinding ball mill and sieving machine, the crusher closed circuit operation, energy saving, shop no dust and high crushing efficiency.Off the drug before the separation of the mixed concentrates of copper and molybdenum mine, to molybdenum concentrate elect flotation column,which is very beneficial to improve the molybdenum concentrate grade. Use the Kalam-sealed flotation machine is very sophisticated, to ensure that workshop no smell.
