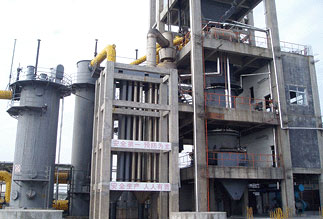

Two-stage Coal Gasifier
Technical Data Of Two-stage Coal Gasifier
|
|
CG3Q2.0-1
|
CG3Q2.6-1
|
CG3Q3.0-1
|
CG3Q3.2-1
|
CG3Q3.4-1
|
|
I.D. Of chamber(mm)
|
2000
|
2600
|
3000
|
3200
|
3400
|
|
Chamber cross-section area(m2)
|
3.14
|
5.31
|
7.07
|
8.04
|
9.08
|
|
Heat perception area of water jacket (m2)
|
11.69
|
15.19
|
17.53
|
18.7
|
19.87
|
|
Applicable coal
|
Non-caking or weak-caking anthracite,bituminous coal,coke,coal property should comcident with the requirement of Gb9143
|
|
(mm) Ash layer
|
100-300
|
100-300
|
100-300
|
100-300
|
100-300
|
|
(mm) Coal size
|
13～25、25～50、50～100
|
|
Coal size (mm)
|
20-40 25-50 30-60
|
|
Coal consumption (kg/h)
|
800-900
|
1200-1500
|
2000-2200
|
2200-2600
|
2500-2800
|
|
Air consumption (m3/kg coal)
|
2.0-2.5
|
2.0-2.5
|
2.0-2.5
|
2.0-2.5
|
2.0-2.5
|
|
Steam consumption
|
0.3-0.5
|
|
Gas output Nm3/h
|
2500-2800
|
4000-5000
|
5500-3800
|
6300-7500
|
700-8800
|
|
Net heating value kJ/m3 Distillation stage Gasifying stage
|
6060-6270 7110-7350 5225-5434
|
|
Gas pressure (kPa) Distillation stage Gasifying stage
|
1.0-1.2 2.0-2.5
|
2.2-3.0 3.0-4.5
|
2.2-3.0 3.0-4.5
|
3.0-3.5 3.5-4.5
|
3.0-3.5 3.5-4.5
|
|
Gas temperature(℃) Distillation stage Gasifying stage
|
80-120 450-550
|
80-120 450-550
|
80-120 450-550
|
80-120 450-550
|
80-120 450-550
|
|
Max. Blast pressure (kPa)
|
6.0
|
6.0
|
6.5
|
7.0
|
7.5
|
|
Saturated vapor temperature (℃)
|
50-65
|
|
Steam seal pressure of Poking hole (MPa)
|
0.25
|
|
Steam products (kg/h)
|
300
|
450
|
500
|
550
|
550
|
|
Inner steam pressure (MPa)
|
0.07
|
|
Feeding coal mode
|
Automatic
|
|
Coal feeding system
|
Hydraulic driving
|
|
Ash tray speed (r/h)
|
2.97
|
1.7
|
1.5
|
1.5
|
1.5
|
|
Hydraulic station power (KW)
|
7.5*2
|
7.5*2
|
11*2
|
11*2
|
11*2
|
|
Discharging ash mode
|
Automatic wet discharging ash
|
|
DN (mm) Distillation stage Gasifying stage
|
DN350 400*400
|
DN400 766*766
|
DN400 866*866
|
DN500 866*866
|
DN400 866*866
|
