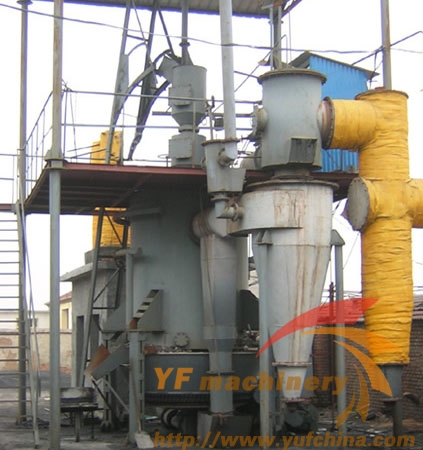

Coal Gasifier
The Yufeng Coal Gasifier is also called coal gas generator. It is manufactured by adopting the long points of various similar enterprises and is consequently advanced in design and reasonable in construction. The furnace body adopts the complete water jacket
structure. The self produced steam can satisfy the requirement of both coal gasification and steam sealing for poking hole. Coal-feeding adopts manual or electrical drum-type double bell jars.
| Model |
QM0.8 |
QM1.0 |
QM1.2 |
QM1.5 |
QM1.6 |
QM1.8 |
QM2.0 |
QM2.4 |
QM2.6 |
QM3.0 |
| Chamber diameter(mm) |
800 |
1000 |
1200 |
1500 |
1600 |
1800 |
2000 |
2400 |
2600 |
3000 |
| Hearth active surface(m2) |
0.5 |
0.785 |
1.13 |
1.77 |
2.01 |
2.54 |
3.14 |
4.52 |
5.31 |
7.07 |
| Suirable fuel |
weak coherent gas carbon,anotherracite,
burnt carbon |
|
|
|
|
|
|
|
|
|
| Fuel granularity(mm) |
25-80 |
25-80 |
25-80 |
25-80 |
25-80 |
25-80 |
25-80 |
25-80 |
25-80 |
25-80 |
| Fuel consumption quantity(kg/h) |
40-100 |
70-140 |
120-190 |
160-350 |
350-460 |
500-600 |
500-720 |
700-1040 |
850-1200 |
1700-2000 |
| Gasifying agent |
Air ,steam |
Air ,steam |
Air ,steam |
Air ,steam |
Air ,steam |
Air ,steam |
Air ,steam |
Air ,steam |
Air ,steam |
Air ,steam |
| Gas yield(NM3/h) |
140-350 |
245-490 |
420-670 |
560-1200 |
1200-1600 |
1500-2100 |
1750-2500 |
2500-3600 |
3000-4300 |
6000-7000 |
| Gas calorific value(KJ/NM3) |
5020-5670 |
5020-5670 |
5020-5670 |
5020-5670 |
5020-6000 |
5020-6000 |
5020-6000 |
5020-6000 |
5020-6000 |
5020-6000 |
| Water jacket heating area(m2) |
4.02 |
5.02 |
6.78 |
10.37 |
11.06 |
12.44 |
17.58 |
21.87 |
23.69 |
30.16 |
| Steam output(kg/h) |
60 |
80 |
130 |
200 |
220 |
260 |
350 |
420 |
600 |
840 |
| Gas outlet temperature(DC) |
(400-500)Plants
related with the coal |
|
|
|
|
(400-500)Plants related with the coal |
|
|
|
|
| Gas outlet pressure(Pa) |
≤1000 |
no more than 1000 |
≤1000 |
≤1000 |
≤1000 |
≤980-1470 |
≤980-1470 |
≤980-1470 |
≤1470-1960 |
≤1470-1960 |
| Gas exportation diameter(mm) |
219 |
325 |
325 |
426 |
426 |
529 |
630 |
720 |
820 |
1020 |
| Air pressure(Pa) |
≤3000 |
≤3000 |
≤3000 |
≤3000 |
≤3000 |
≤4000 |
≤4000 |
≤4000 |
≤4000 |
≤4000 |
| Saturated air temperature(DC) |
50-60 |
50-60 |
50-60 |
50-60 |
50-60 |
50-65 |
50-65 |
50-65 |
50-65 |
50-65 |
| Ashpan rotational speed(r/h) |
0.177-1.77 |
0.177-1.77 |
0.177-1.77 |
0.177-1.77 |
0.177-1.77 |
0.177-1.77 |
0.177-1.77 |
0.177-1.77 |
0.177-1.77 |
0.177-1.77 |
| Equipment gross weight(t) |
3.5 |
4.5 |
5 |
7.5 |
10 |
20 |
23.4 |
29.8 |
32 |
37.6 |
| Complete machine motor power(kw) |
≤6 |
≤6 |
≤6 |
≤7 |
≤8 |
≤10 |
≤14 |
≤20 |
≤20 |
≤27 |
| Air intake diameter(mm) |
108 |
108 |
140 |
165 |
219 |
325 |
325 |
426 |
426 |
426 |
Welcome to Zhengzhou YUFENG Machinery Company.If you want to more information about our Coal Gasifier, Please give us the message, we will reply as soon as possible.

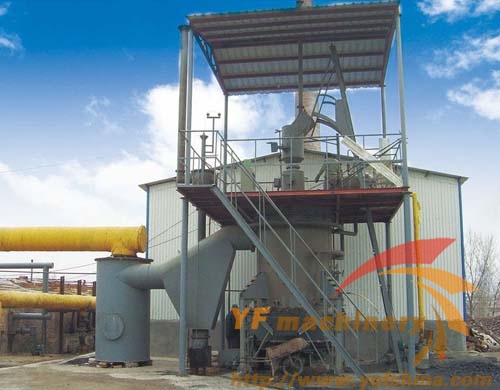

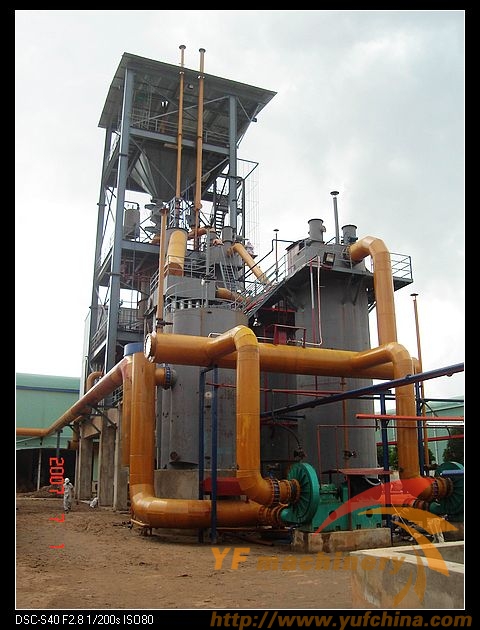

Coal Gasifier
Coal Gasifier Work Principle:
The gas furnace take the air and the steam as vaporization medicinal preparation, production combination gas advanced equipment, this coal gasifier equipments suits the vaporization coking coal, fuel and so on.
Coal Gasifier Application
Our products coal gasifier is one of the high production capacity and high gasification efficient gasifier. The coal gasifier is widely used in metallurgical,mechanical,chemical industry, nonferrous metal industry and other industries.
Coal Gasifier Advantages:
1.To use producer gas generator may enhance the thermal efficiency, also the coal burning if full, many reduce the energy to disappear, with direct coal-burning, may reduce disappears 20-40 translation.
2.Using producer gas generator may cause the necessary kiln stove temperature big 1500°, moreover, in kilim temperature difference.
3.The gas generator conforms to the industry kiln gas to discharge the GB9079.88 waste residue the platoon, uses the wet dregs, does not have the dirt has certain social efficiency.
