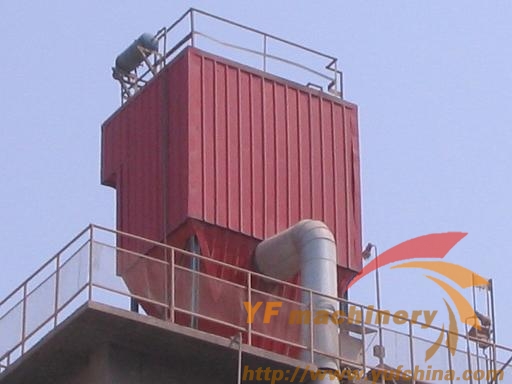

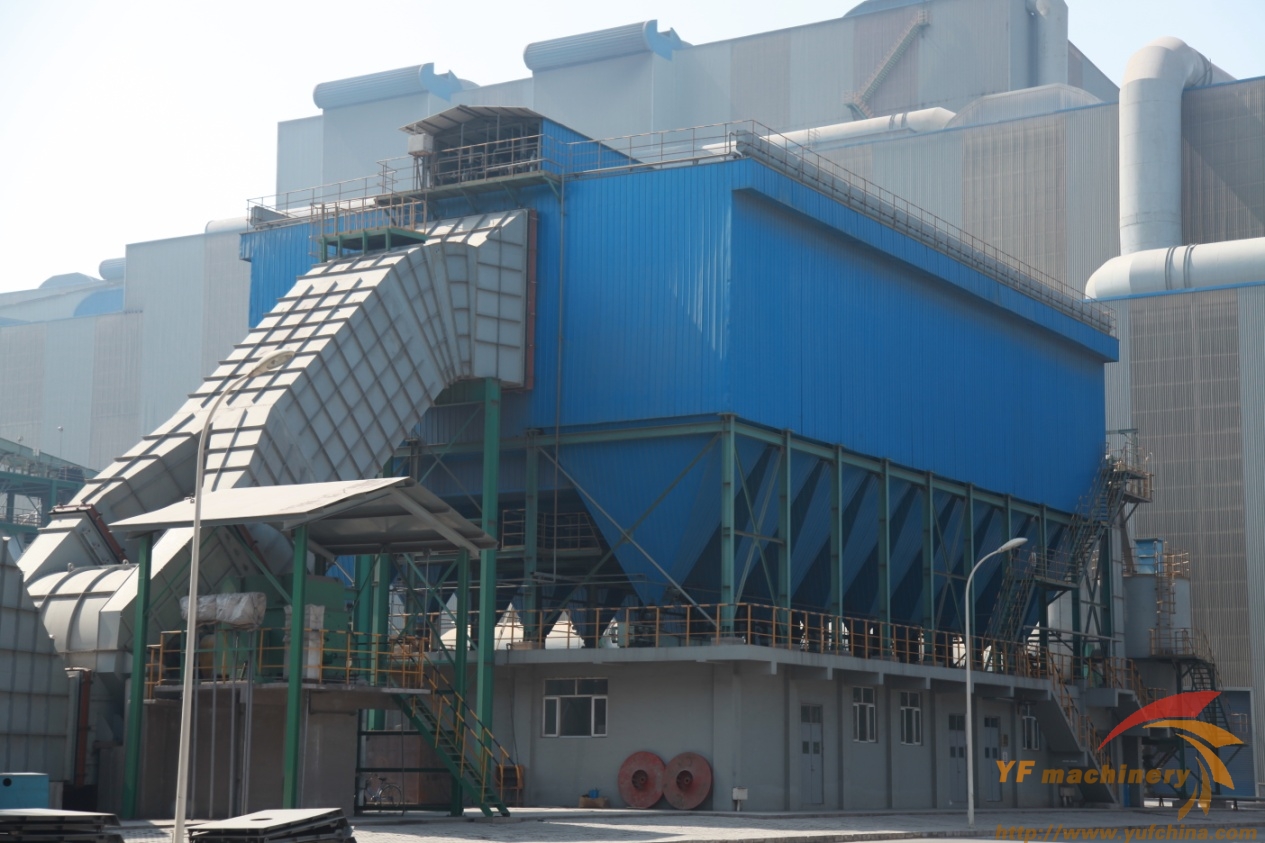

SLQM Pulse Jet Bag Dust Collector
SLQM Pulse Jet Bag Dust Collector Brief Introduction:
1. clean dust with offline pulse and effectiveness is up to 99.9%. the dust has no secondary absorption. it is specially used for handling high concentrated gas.
2. SLQM Pulse Jet Bag Dust Collector use reverse blowing in high temperature to prevent condensation effectively.
3. use new materials for cleaning dust and the machine is with reliable tracking system of gas temperature. it can adapt to various conditions.
4. because of automatic control by computers, the machine is easy to be operated with good reliability.
5. the dust collector is with air box, which avoids partial damage and inconvenient installation.
Welcome to Zhengzhou YUFENG Machinery Company.If you want to more information about our SLQM Pulse Jet Bag Dust Collector, Please give us the message, we will reply as soon as possible.
|
model
|
slqm32-3
|
slqm32-4
|
slqm32-5
|
slqm32-6
|
slqm64-4
|
slqm64-5
|
slqm64-6
|
slqm64-7
|
slqm64-8
|
|
air volume (m3 /h)
|
6900
|
8930
|
11160
|
13390
|
17800
|
22300
|
26700
|
31200
|
35700
|
|
total filter area (m2)
|
93
|
124
|
155
|
186
|
248
|
310
|
372
|
434
|
496
|
|
chamber(pcs)
|
3
|
4
|
5
|
6
|
4
|
5
|
6
|
7
|
8
|
|
quantity of filter bag(pcs)
|
32
|
64
|
|
total quantity of filter bag(pcs)
|
96
|
128
|
160
|
192
|
256
|
320
|
384
|
448
|
512
|
|
pulse valve
|
quantity
|
3
|
4
|
5
|
6
|
4
|
5
|
6
|
7
|
8
|
|
specification
|
1
|
2
|
|
specification of filter bag
|
130(d.)*2450
|
|
filter material
|
based on flue gas properties
|
|
filtration speed
|
0.8~2.0(adjustable)
|
|
negative pressure
|
less than 6000
|
|
resistance
|
1470~1770
|
|
inlet dust concentration
|
less than 200
|
less than 1000
|
|
blowing pressure
|
0.5~0.7
|
|
compressed air consumption
|
0.27
|
0.37
|
0.46
|
0.55
|
1.2
|
1.5
|
1.8
|
2.1
|
2.4
|
|
air-locking unit
|
adjustable
|
|
screw conveyor
|
no
|
adjustable
|
|
area of heat preservation
|
26.5
|
34
|
41
|
48.5
|
70
|
94
|
118
|
142
|
176
|
