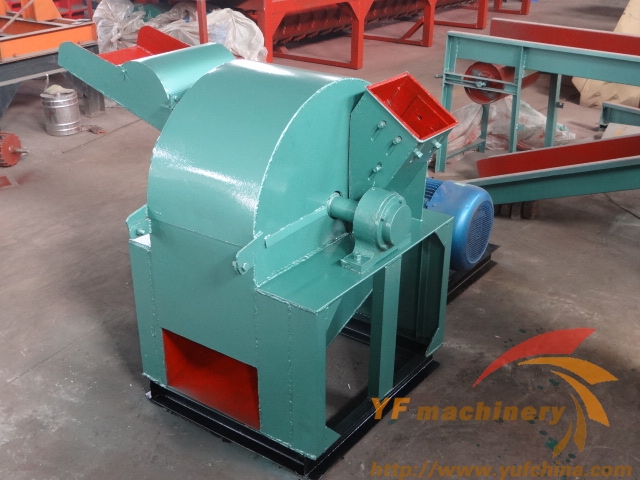

Wood Sawdust Machine
The
wood sawdust machine combines both chipping and crushing equipment in one machine so the
wood sawdust crusher can make sawdust in one passage, no need touse wood chipper for
preprocessing of wood logs.
Raw material of wood sawdust machine:
all kinds of wood, timber scraps, branches, wood chips, edge material, tree bark,bamboo skin and
other raw material
Application of Wood sawdust crusehr machine:
the wood sawdust crusher is used to make material for mushroon cultivation, sawdust board production,
wood pellet production, wood briquette making, wood powder making, etc.
Safe operation procedures of the wood sawdust machine
1. Check the wood sawdust crushing equipment before starting and tighten the bolts
2. Clean the stones and metal in the raw material.
3. Non-load Startup. Feed the sawdust machine when it works normally without bigger wood or ironware.
4. Operators should stand at the flank of the feed inlet.
5. Cut off power supply before examining and repairing.
Model |
Power(kw) |
Capacity(t/h) |
Inlet size(mm) |
Blade number |
Outer size(m) |
Weight(kg) |
MXJ-420 |
11 |
0.5-1 |
150*120 |
4 |
1.5*0.9*1.0 |
225 |
MXJ-500 |
18.5 |
1-2 |
200*170 |
4 |
1.7*1.1*1.1 |
410 |
MXJ-600 |
22 |
2-3 |
200*200 |
4 |
1.8*1.1*1.2 |
500 |
MXJ-700 |
37 |
3-4 |
240*240 |
6 |
1.9*1.2*1.4 |
695 |
MXJ-800 |
45 |
3.5-4 |
250*250 |
6 |
2.0*1.2*1.4 |
820 |
MXJ-1000 |
75+7.5 |
5-6 |
280*280 |
8 |
2.2*1.35*1.7 |
1200 |
Drum Wood Chipping Machine
Drum wood chipping machine consists of engine base,blade roller,upper and lower feeding roller,
belt conveyor,hydraulic system etc.
Application of Drum Wood Chipping Machine:
Our Drum Wood Chipping Machine GX218 model can chip different kinds of wood with
diameter less 300mm into the small wood chip.
The wood chipping machine is widely usedin the wood industry field, such as the fiber board,
MDF and paper mill factory.
Feature of Drum Wood Chipping Machine:
1. Compact structure;
2. Higher efficiency;
3. Lower electricity consumption;
4. Stable function and easy maintaince.
Model |
GX215 |
GX216 |
GX218 |
GX2113 |
Feeding inlet size(mm) |
160*400 |
230*500 |
300*680 |
450*700 |
Knives number |
2 |
2 |
2 |
2 |
Knife roller rotating speed(r/min) |
592 |
590 |
650 |
500 |
The max dia of the materials(mm) |
160 |
230 |
300 |
450 |
Size of chips(mm) |
30 |
30 |
30 |
38 |
Capacity(T) |
3-4 |
7-8 |
12-15 |
15-30 |
Main engine Power(kw) |
45 |
55 |
110 |
200-250 |
Feeding roller power(kw) |
2.2-3 |
3-4 |
4-5 |
7.5*2 |
Oil pump power(kw) |
1.5*1 |
1.5*1 |
1.5*1 |
3*1 |
Weight(kg) |
2990 |
4070 |
7000 |
11840 |
Outer size(m) |
1.47*1.55*0.97 |
1.8*1.9*1.21 |
2.2*2.15*1.5 |
3.67*2.517*2.05 |
Conveyor power(kw) |
3 |
3 |
3 |
3 |
Welcome to Zhengzhou YUFENG Machinery Company.If you want to more information about our Wood Sawdust Machine/Drum Wood chipper, Please give us the message, we will reply as soon as possible.
