Cyclone Dust Catcher
Cyclone, is the bypass chamber cyclone dust collector. According to the installation location, installation form is divided into two kinds of left circumflex and right swing. The cyclone dust collector for the mechanical processing, metallurgy, building materials, the dust of mining, the rough purification. Cyclone, into the cylinder, cone under the two parts. Dust and dust into the air through the mouth, cutting into the bypass chamber to the greater pressure, downstream into the cylinder, Huge cyclone, the centrifugal dust particles down into the cone, the net gas into the atmosphere through the exhaust pipe.

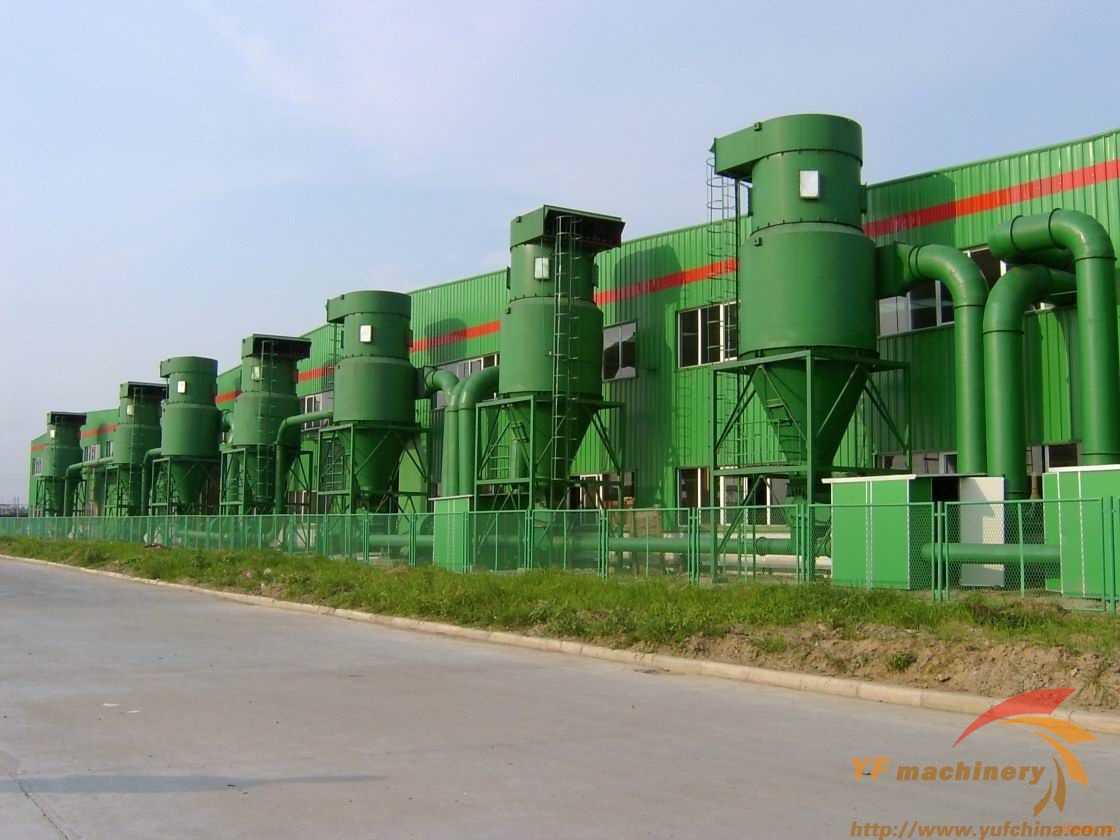

Cyclone Dust Catcher Cyclones use centrifugal force to separate particulate out of the airstream. There are no moving parts inside a cyclone body and no filter media.

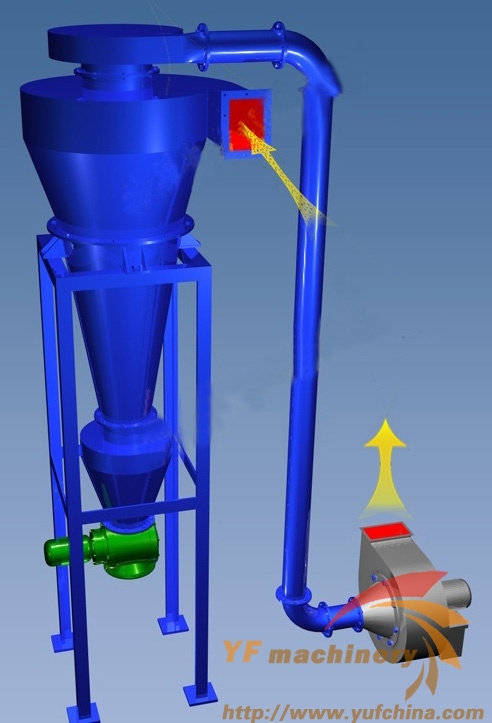

Air and particulate enter the inlet at a high velocity along the inner wall at the top of the cylindrical cyclone body. This starts a spinning path as inertia forces the particulate against the inner wall, resulting in a relatively clean area in the center.
This clean air is exhausted through an outlet chamber that starts in the center of the cyclone and exits out the top.
As gravity starts pulling the spinning particulate down, the taper of the cyclone body helps keep the spinning (cyclonic) effect in motion until it drops out the bottom of the cyclone body and into a hopper.
Typically, air is pulled through the cyclone from a fan located downstream of the cyclone, but it can be pushed through as well.

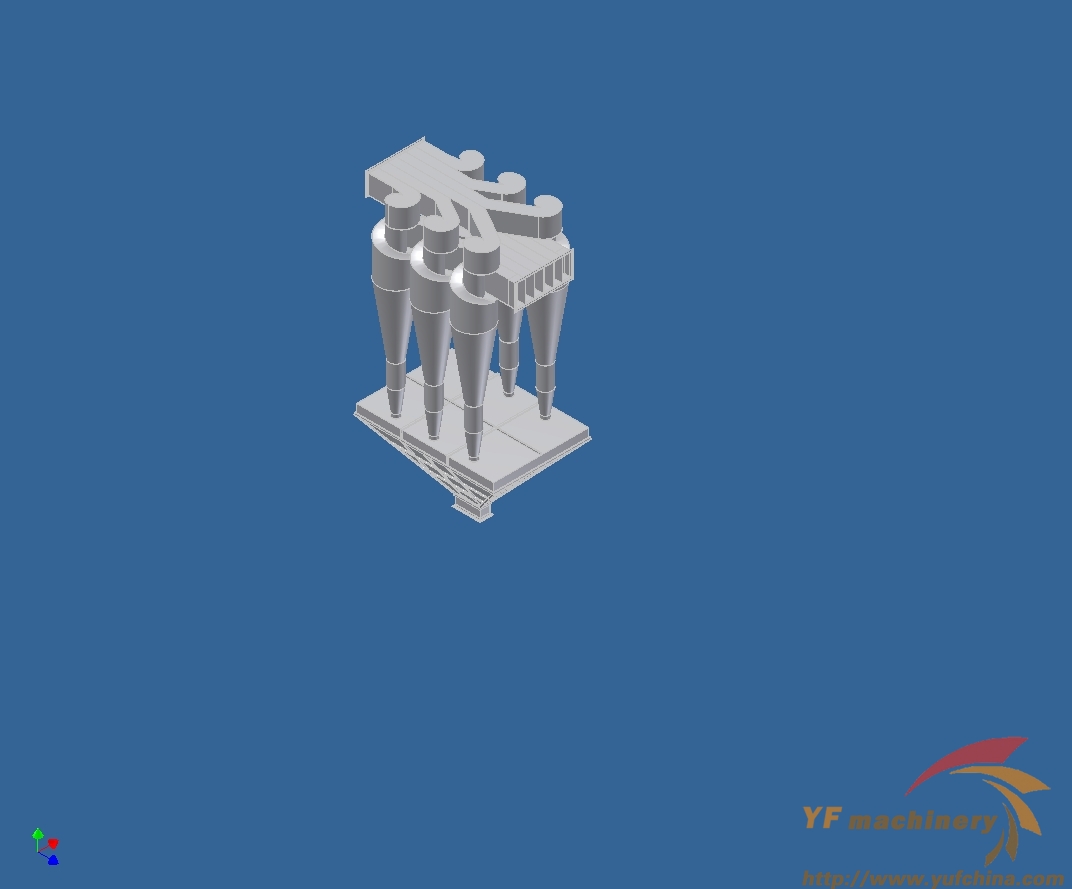

The Cyclone Dust Catcher cyclone design makes it suitable for extremely high concentrations of particulate. Efficiency increases with larger (coarse) particles. So does a decrease in cyclone diameter. Two smaller cyclones running in parallel have a higher efficiency than one larger cyclone with an equal pressure drop.
The Cyclone Dust Catcher specifications
Model |
Air volume(m3/h) |
Wind speed for inlet(m3/s) |
Resistance(kg/m²) |
Out size(L×W×H) |
Weight(kg) |
X |
Y |
X |
Y |
XLP/B~3.0 |
630~1050 |
12~27 |
30~90 |
27~75 |
438×381×1606 |
439×381×1360 |
66 |
XLP/B~4.2 |
1280~2138 |
603×534×2172 |
630×534×1375 |
108 |
XLP/B~5.2 |
2090~3480 |
772×685×2764 |
772×685×2395 |
170 |
XLP/B~7.0 |
3650~6080 |
994×889×3529 |
994×889×3089 |
283 |
XLP/B~8.2 |
5030~8380 |
1167×1040×4110 |
1167×1040×3600 |
374 |
XLP/B~9.4 |
6650~10620 |
1332×1094×4671 |
1332×1094×4110 |
477 |
XLP/B~10.6 |
8370~13980 |
1495×1345×5232 |
1495×1345×4621 |
578 |
Welcome to Zhengzhou YUFENG Machinery Company.If you want to more information about our Cyclone Dust Catcher, Please give us the message, we will reply as soon as possible.
