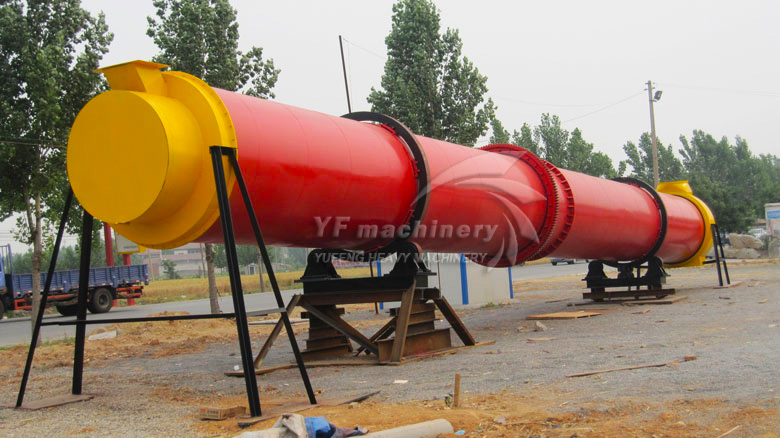

Rotary Dryer is suitable for drying sawdust, organic material, chemical material and etc. This type rotary dryer has advantage of high drying capacity, stable working performance, low consumption and easy operation.
The rotary dryer adopts air inhale device to inhale the hot air from air-heating furnace to the inner of dryer to complete heating change with wet material. According to the different character of material, we use different type lifting plate and Anti-sticking measures.
There are multi-angle lifting style lifting plate inside of dryer; during drying, the lifting plate will raising the material evenly, which can ensure the material complete heating change with the hot air enough and also ensure the drying efficiency is good.
Technical Parameters of YF-Series Rotary Dryer
Spec./m
(Dia.×Length) |
Shell Cubage
(m³) |
Capacity
(t/h) |
Installation
Obliquity
(%) |
Highest Inlet
Air Temperature
(℃) |
Main Motor
(KW) |
Weight
(t) |
| Φ1.2×8.0 |
9.0 |
1.9 ~ 2.4 |
3 ~ 5 |
700 ~ 800 |
7.5 |
9 |
| Φ1.2×10 |
11.3 |
2.4 ~ 3.0 |
3 ~ 5 |
700 ~ 800 |
7.5 |
11 |
| Φ1.5×12 |
21.2 |
4.5 ~ 5.7 |
3 ~ 5 |
700 ~ 800 |
15 |
18.5 |
| Φ1.5×14 |
24.7 |
5.3 ~ 6.6 |
3 ~ 5 |
700 ~ 800 |
15 |
19.7 |
| Φ1.5×15 |
26.5 |
5.7 ~ 7.1 |
3 ~ 5 |
700 ~ 800 |
15 |
20.5 |
| Φ1.8×12 |
30.5 |
6.5 ~ 8.1 |
3 ~ 5 |
700 ~ 800 |
18.5 |
21.5 |
| Φ1.8×14 |
35.6 |
7.6 ~ 9.5 |
3 ~ 5 |
700 ~ 800 |
18.5 |
23 |
| Φ2.2×12 |
45.6 |
9.7 ~ 12.2 |
3 ~ 5 |
700 ~ 800 |
22 |
33.5 |
| Φ2.2×14 |
53.2 |
11.4 ~ 14.2 |
3 ~ 5 |
700 ~ 800 |
22 |
36 |
| Φ2.2×16 |
60.8 |
13.0 ~ 16.2 |
3 ~ 5 |
700 ~ 800 |
22 |
38 |
| Φ2.4×14 |
63.3 |
13.5 ~ 16.9 |
3 ~ 5 |
700 ~ 800 |
37 |
45 |
| Φ2.4×18 |
81.4 |
17.4 ~ 21.7 |
3 ~ 5 |
700 ~ 800 |
37 |
49 |
| Φ2.4×20 |
90.4 |
19.3 ~ 24.1 |
3 ~ 5 |
700 ~ 800 |
45 |
54 |
| Φ2.4×22 |
99.5 |
21.2 ~ 26.5 |
3 ~ 5 |
700 ~ 800 |
45 |
58 |
| Φ2.6×24 |
127.4 |
27.2 ~ 34.0 |
3 ~ 5 |
700 ~ 800 |
55 |
73 |
| Φ3.0×20 |
141.3 |
30.1 ~ 37.7 |
3 ~ 5 |
700 ~ 800 |
75 |
85 |
| Φ3.0×25 |
176.6 |
37.7 ~ 47.1 |
3 ~ 5 |
700 ~ 800 |
75 |
95 |
| Φ3.2×25 |
201 |
42.9 ~ 53.6 |
3 ~ 5 |
700 ~ 800 |
90 |
110 |
| Φ3.6×28 |
285 |
60.8 ~ 76.0 |
3 ~ 5 |
700 ~ 800 |
160 |
135 |
