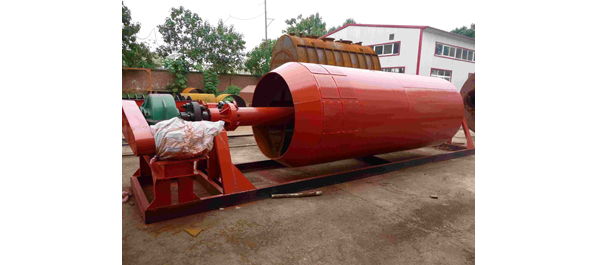

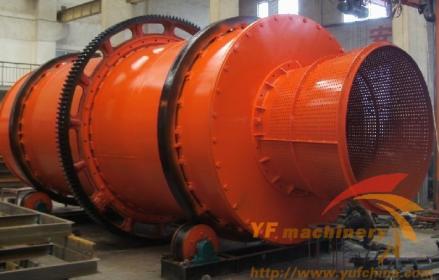

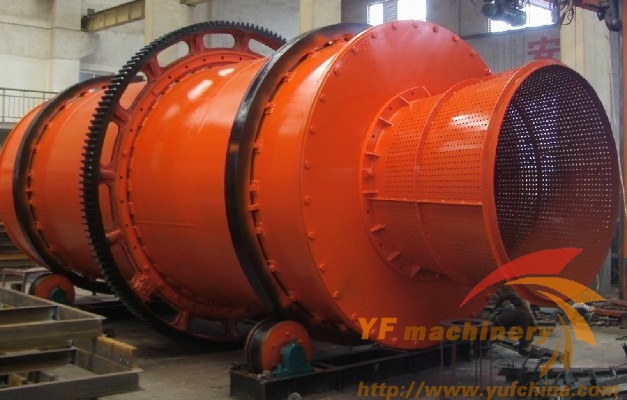

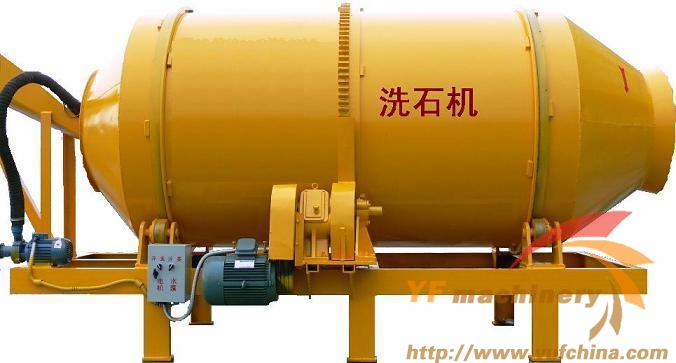

Description of Rotary Stone Washer
stone washer is a main equipment for washing stone and sand.this stone washer is aspecial equipement
used for cleaning the sand and stone materials in highway,reilway,bridge ,tunnel construction industries,this rotary stone washer is more flexible,productive.and energysaving with higher cleaning ration than other similar rotary stone washer in domestic.
Application of Rotary Stone Washer:
stone washer is a special equipment used for cleaning the sand and stone materials in highway, railway,
bridge, tunnel construction industries. It is more flexible, productive and energy-saving with higher cleaning
ration than other similar products in domestic. It is applicable for the clean and separation of fine and crude
size materials.
Characteristics of Rotary Stone Washer:
1.Reasonable structure, easy maintenance, high output, low energy consumption, high cleaning rate
2.novelty cloth structure, brand-new transsmission device, adjustable sink
3.efficient, wearing, and of good hydrate effect, steady final product.
Working Principal of Rotary Stone Washer:
The electric motor drives the drum sieve to rotate after reducing speed through V-belt, gear box, gear wheel. The stone loader is put into the hopper and rolls along with the drum sieve and
the stones are grinded mutually. In this process, the impurity on the surface of the stone are removed.
Meanwhile, water will be added and forms a strong water flow, which will take the impurities and light foreign
matters. The dry stones will be carried to the yard by conveyors.
Technicial Parameters os Rotary Stone Washer
| Specification |
1542 |
1842
|
2042
|
Cylinder diameter
(mm) |
1500 |
1800 |
2000 |
| Cylinder length(mm) |
4200 |
4200 |
4200 |
| Screw speed(r/min) |
10-13 |
10-12 |
9-11 |
| Feed size(mm) |
60 |
80 |
110 |
| Capacity(t/h) |
40-60 |
60-80 |
100-150 |
| Motor power(kw) |
15 |
18.5 |
22 |
| Weight(t) |
2.8 |
5 |
10 |
| Overall dimension(m) |
6.5*1.75*1.8 |
7.5*2.1*2.6 |
8.8*2.2*2.9 |
