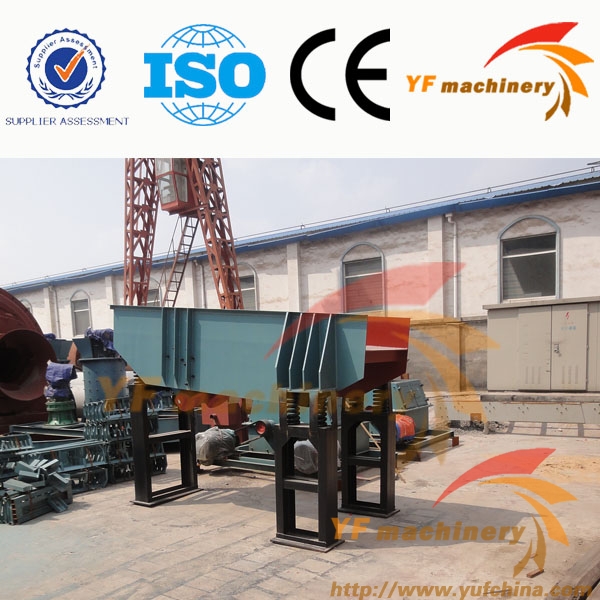

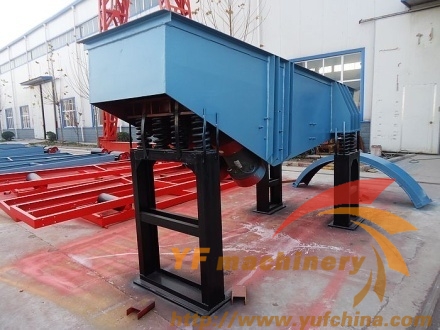

Vibrating Feeder
Vibrating Feeder Application

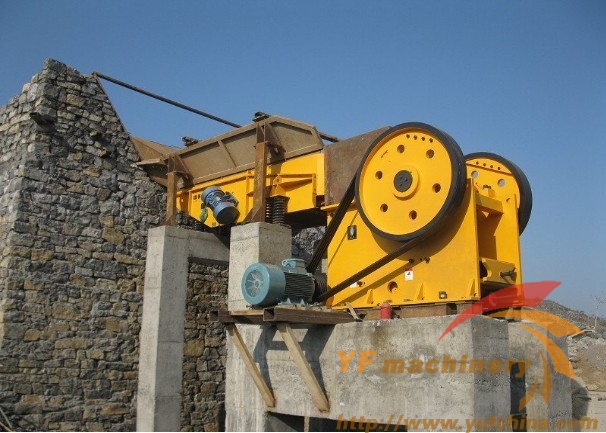

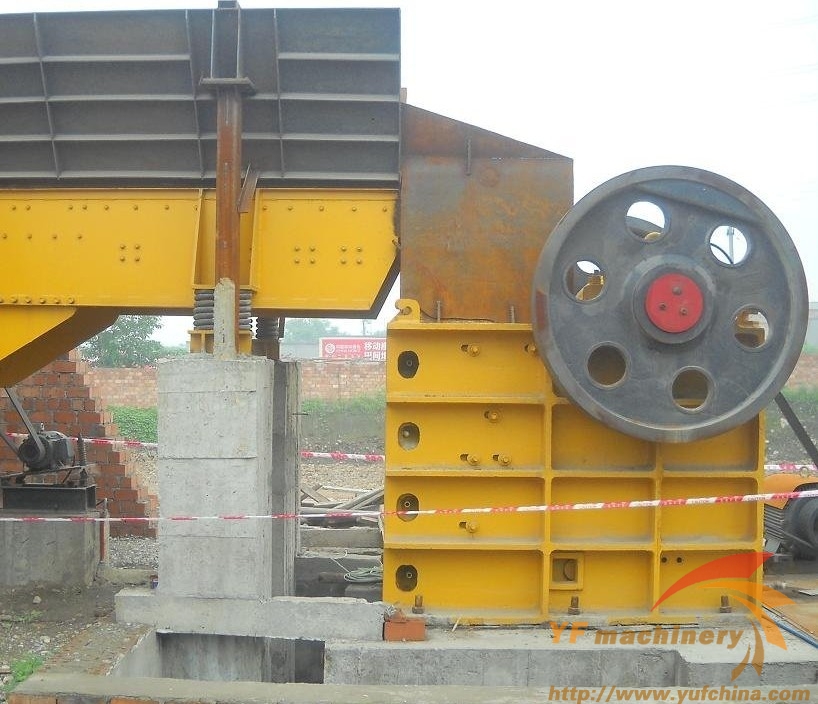

The Vibrating Feeder is mainly used to feed material into the primary stone crusher homogeneously and continuously. Meanwhile, it can screen material, making the crusher more powerful. Proven performance and maintenance free operation make our vibrating feeders the first choice in feeders for the most demanding applications including public utilities, mining, metals production, food processing, cement, and other industries.
Vibrating Feeder Benefits
1. Our vibrating feeder is of highest capacity for the same deck size in industry
2. Sub-resonance tuning to guarantee efficient, continued operation as deck liners wear
3. vibrating feeder Simple structure, easy adjustment and maintenance.
4. Infinite variety of sizes and custom configurations
5. Our vibrating feeder is added closed frame; it can largely reduce pollution and noise.
Technical parameter of vibrating feeder:
|
Motel
|
Max feed size(mm)
|
Capacity
(t/h)
|
Motor power
(kw)
|
Total Weight
(kg)
|
Trough size(mm)
|
Dimensions
(LxWxH)
(mm)
|
|
GZD650x2300
|
300
|
80
|
1.5x2
|
2798
|
650x2300
|
2300x1360x780
|
|
GZD-750x2500
|
350
|
100
|
1.5x2
|
3260
|
750x2500
|
2500x1460x780
|
|
GZD-850x3000
|
400
|
120
|
3x2
|
3607
|
850x3000
|
3110x1800x1600
|
|
GZD-1000x3600
|
500
|
150
|
5.5x2
|
3895
|
1000x3600
|
3850x1950x1630
|
|
GZD-1100x4200
|
580
|
240
|
5.5x2
|
4170
|
1100x4200
|
4400x2050x1660
|
|
GZD-1100x4900
|
580
|
280
|
7.5x2
|
4520
|
4900x1100
|
5200x2050x1700
|
|
GZD-1300x4900
|
650
|
450
|
11x2
|
5200
|
1900x1300
|
5200x2350x1750
|
|
ZSW-380x95
|
500
|
96-160
|
11
|
4082
|
3800x960
|
3920x1640x1320
|
|
ZSW-490x110
|
630
|
120-280
|
15
|
5352
|
4900x1100
|
4980x1830x1320
|
|
ZSW-600x130
|
750
|
400x560
|
22
|
7800
|
6000x1300
|
6082x2580x2083
|
Welcome to Zhengzhou YUFENG Machinery Company.If you want to more information about our
Vibrating Feeder
, Please give us the message, we will reply as soon as possible.
