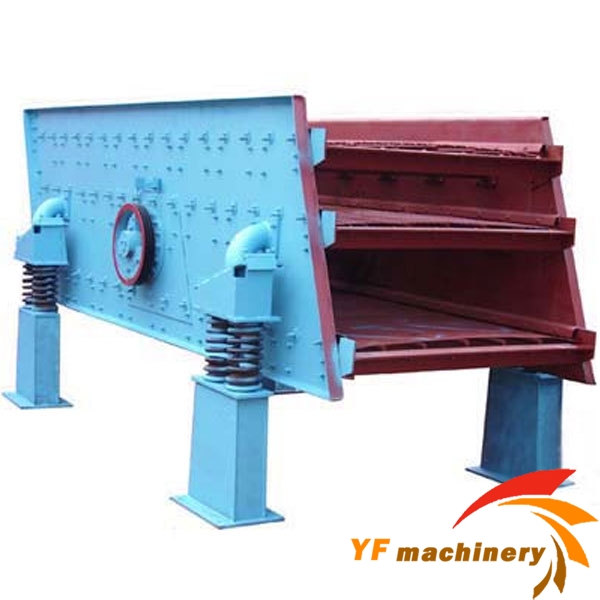

Technical Parameter Introduction vibrating screen Specification and Technical Parameter Model Layer of Screen Double Ampli-tude (mm) Size of Sieve Pore (mm) Max. Feeding Size (mm) Capacity (m3/h) Model of Motor Motor Power (kw) Screen Specification (mm) Total Weight (t) (Excluding Electric Motor) Dimension (L×W×H) (mm) 2YA1237 2 6-8 3-50 300 10-80 Y160M-4 11 1200×3700 3.6 4600×1900×1200 3YA1237 3 8 3-50 300 10-80 Y160M-4 11 1200×3700 3.9 4730×1900×1650 4YA1237 4 8 3-50 300 10-80 Y160M-4 11 1200×3700 4.5 4900×1900×2150 2YA1548 2 8 3-100 300 22-160 Y160L-4 15 1500×4800 4.6 5720×2260×1200 3YA1548 3 8 3-100 300 22-160 Y160L-4 15 1500×4800 5.1 5900×2260×1650 4YA1548 4 8 3-100 300 22-160 Y160L-4 15 1500×4800 5.6 6050×2260×2100 2YA1848 2 8 3-100 300 32-276 Y180M-4 18.5 1800×4800 5.35 5720×2560×1200 3YA1848 3 8 5-100 300 32-276 Y180M-4 18.5 1800×4800 6 5900×2560×1650 4YA1848 4 8 3-100 300 32-276 Y180M-4 18.5 1800×4800 6.65 6050×2560×2100 2YA1860 2 8 3-100 300 65-586 Y180M-4 22 1800×6000 6 6920×2560×1200 3YA1860 3 8 3-100 300 65-586 Y180M-4 22 1800×6000 6.6 7100×2560×1650 4YA1860 4 8 3-100 300 65-586 Y180M-4 22 1800×6000 7.2 7250×2560×2110 2YA2160 2 8 3-100 300 81-720 Y200L-4 30 2100×6000 10.1 7020×3090×1320 3YA2160 3 8 3-100 300 81-720 Y200L-4 30 2100×6000 11.3 7160×3090×1780 4YA2160 4 8 3-100 300 81-720 Y200L-4 37 2100×6000 12.5 7320×3090×2230 2YA2460 2 8 3-150 300 90-810 Y225S-4 37 2400×6000 11.6 7020×3390×1320 3YA2460 3 8 3-150 300 90-810 Y225S-4 37 2400×6000 12.8 7160×3390×1780 4YA2460 4 8 3-150 300 90-810 Y225S-4 37 2400×6000 14 7320×3390×2230 2YK2865 2 3-5 3-200 300 150-1000 Y225S-4 37 2800×6500 13 7190×3630×1550 3YK2865 3 3-5 3-200 300 150-1000 Y225S-4 37 2800×6500 14.5 7340×3630×2050 4YK2865 4 3-5 3-200 300 150-1000 Y225M-4 45 2800×6500 15.8 7513×3630×2550 Welcome to Zhengzhou YUFENG Machinery Company.If you want to more information about Circular Vibrating Screen, Please give us the message, we will reply as soon as possible.                  Circular Vibrating Screen    YK Series incline vibrating screen absorbs Germany technology with high efficiency. The amplitude of the vibrating screen can be adjusted. The screening line is long and specification of materials is various, and it is also of reliable structure, strong exciting force, high screening efficiency. It is widely used in sieve different sizes of aggregate. It is also applied to coal dressing, ore dressing, building material, electric power and chemical industries. Circular Vibrating Screen Working Principle: The motor makes the exciter swing rotate speedily through the tire coupling. The continuous forced circular motions of sieve box were achieved through the powerful centrifugal force. Under the influence of sieve box, the materiel are tossed forward successively on the mesh. they were classified as thrown up, and the particals smaller than the mesh size were sieved out when they are falling, so that the classification of material could Circular Vibrating Screen be achieved. Circular Vibrating Screen structure: Inclined vibrating screen is composed by sieving box, mesh, vibration exciter and damper spring ect. the vibratory screen adopts the vibration exciter with barrel type of eccentric shaft and block to adjust the swing. The vibration exciter is installed on the lateral plate of the sieving box. The motor makes the exciter swing round speedily through tire coupling. The continuous forced circular motions of sieve box were achieved through the powerful centrifugal force. The lateral plate made by the high quality steel plate withour any welding point. The lateral plate, beam and the vibration exciter connected by the high strength bolts and ring-grooved lockbolts. Circular Vibrating Screen Features and Benefits: 1. High vibrating force with unique eccentric structure. Adopt advanced construction, making the vibrating force powerful. 2. Circular Vibrating Screen The beam and case of the screen are connected with high strength bolts without welding. 3. Simple structure, easy to repair. 4. Adopt tire coupling and soft connection makes operation smooth. 5. High efficiency, easy maintenance, sturdy and durable. Circular Vibrating Screen Usage and Maintenance: Inclined Vibrating Screen should start when there is nothing on the screen surface, and should avoid start the machine with materials, when the material running steady, then can feed. Stop feeding before stop the machine, and keep there is no material on the surface then stop the machine. Observe the operation of the machine when it is running. If there are abnormal movement or unusual sound, we should stop the machine and examine it, find the causes, and eliminate the Circular Vibrating Screen troubles.
