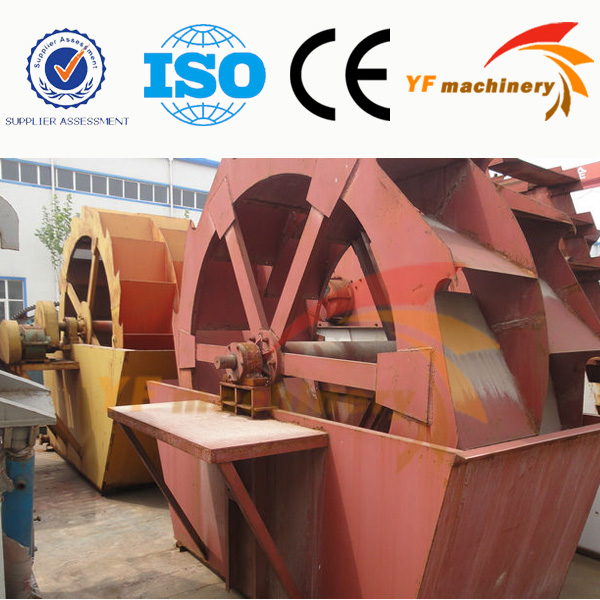

XSD Sand Washing Machine
Sand Washing Machine Description:
XSD Sand Washing Machines are a kind of water washing style equipment to be matched with the sand maker and can reduce the dust and stone powder which mixes with the final sand, Its novel seal structure, the reliable transmission device, guarantees the elution water effect, is one kind of highly effective sand washer that coordinates with sand making machine.Sand washing machine is widely used for cleaning materials in the following industries: quarry, minerals, building materials, transportation, chemical industry, water conservation and cement mixture station and so on.
Sand Washing Machine Working Principle :
The electric motor runs slowly with the impellor after decelerated by the belt, decelerator and gears wheel. The sand and stone flow into washing launder from feeding launder, rolls with the impellor, and grinds each other. The impurity covering the sand is washing away. At the same time, add more water, the strong water flow will take away waste and some low-weight wastes from washing launder. Through the above process, the washing function is finished. The clean sand and stone is lift up by vane. When it goes up slowly, the water begins to drop through the mesh and fall back in the washing launder. On one hand, water is removed from the sand and stone; on the other hand, the water can be fully used. Finally,the sand and stone goes to the out launder from the rotary impellor to finish the washing task.
XSD Sand Washing Machine Characteristics:
Reasonable structure.
Large capacity.Low consumption.
Little loss of the sand during the washing process.
Low failure rate.
XSD Sand Washing Machine Technicial Parameters
| Model |
XSD2610 |
XSD2816 |
XSD3016 |
XSD3620 |
| Spec. of Impeller(mm) |
φ2600×1000 |
φ2800×1600 |
φ3000×1600 |
φ3600×2000 |
| Impeller Speed(r/min) |
1.178 |
1.177 |
1.179 |
1.179 |
| Capacity(t/h) |
20-50 |
30-60 |
50-120 |
60-150 |
| Input Size(mm) |
≤10 |
≤10 |
≤10 |
≤10 |
| Motor Power(kw) |
7.5 |
11 |
15 |
18.5 |
| Decelerator Model |
ZQ50-50-I-Z |
ZQ65-50-I-Z |
ZQ65-50-I-Z |
ZQ65-50-I-Z |
| Overall Dimension(mm) (L×W×H) |
3255x1982x2690 |
3540x3000x2880 |
3845x3000x3080 |
4500x3206x3480 |
Welcome to Zhengzhou YUFENG Machinery Company.If you want to more information about our XSD Sand Washing Machine, Please give us the message, we will reply as soon as possible.
