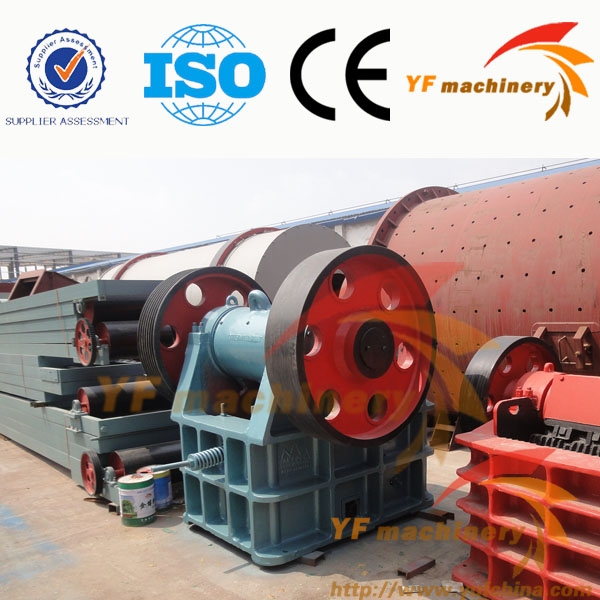

YUFENG Jaw Crusher
The Jaw crusher is widely used in mining, building materials, chemical industry, metallurgy and so on. The Jaw Crusher is suitable for primary and secondary crushing all kinds of minerals and rocks with compressive strength less than 320 MPa.

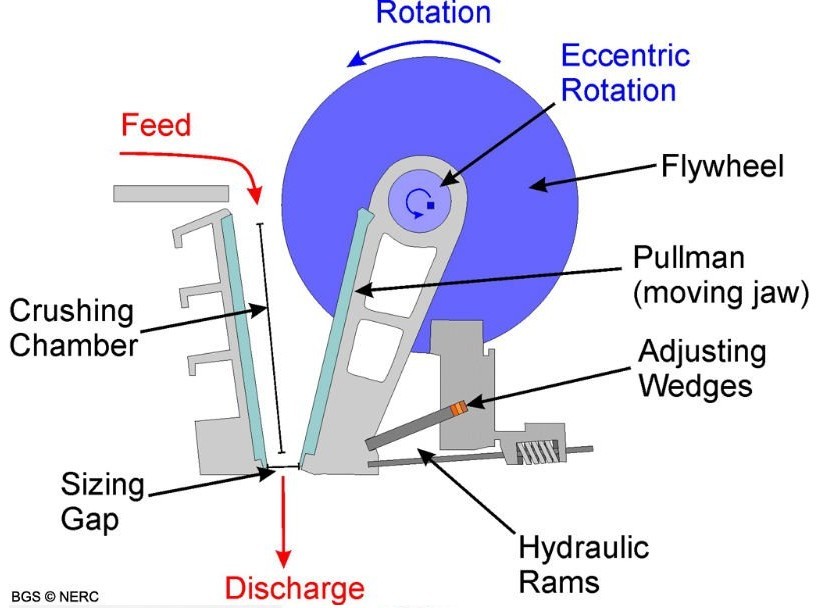

Working Principle Of Jaw Crusher:
Jaw crusher The strip and strip pulley are driven by a motor, and the Jaw crusher movable jaw moves up and down via
eccentric shaft. The angle between fixed jaw and movable jaw becomes smaller when the movable
jaw runs down, Then the Jaw Crusher pressed materials into pieces. It will become bigger when the
movable jaw runs up. The movable jaw board leaves the fixed jaw board under the action of pole
and spring , then the end products come out from the crushing cavity.

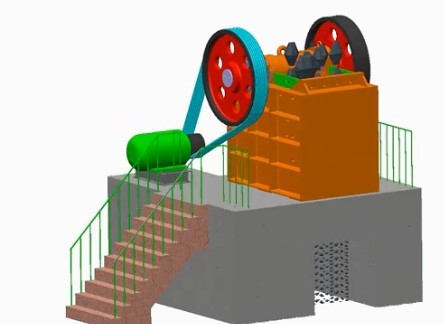

Jaw Crusher Structure:
Features Of The Jaw Crusher:
1. Simple structure, easy maintenance;
2. High crushing ratio, even output granularity;
3. High reliability, low investment;
4. Low noise, less dust.
Jaw Crusher Technicial Parameters
| Specification |
Size of Feed Opening (mm) |
Max Feeding Size (mm) |
Adjustable Size of Discharge Opening (mm) |
Capacity (t/h) |
Motor Power Pole |
Power (kw) |
Dimension (mm) |
Weight (t) |
| PE-150×250 |
150×250 |
125 |
10-40 |
1-3 |
4 |
5.5 |
670×820×760 |
0.81 |
| PE-150×750 |
150×750 |
125 |
10-40 |
5-16 |
4 |
15 |
1050×1490×1055 |
3.8 |
| PE-250×400 |
250×400 |
210 |
20-60 |
5-20 |
4 |
15 |
1160×1300×1240 |
2.8 |
| PE-400×600 |
400×600 |
350 |
40-100 |
16-65 |
6 |
30 |
1480×1710×1646 |
7 |
| PE-500×750 |
500×750 |
425 |
50-100 |
45-100 |
6 |
55 |
1800×1796×1940 |
12 |
| PE-600×900 |
600×900 |
500 |
65-140 |
60-160 |
6 |
75 |
2235×2210×2380 |
17 |
| PE-750×1060 |
750×1060 |
630 |
80-160 |
90-320 |
8 |
110 |
2430×2302×3110 |
29 |
| PE-800×1060 |
800×1060 |
640 |
80-200 |
110-350 |
8 |
110 |
2530×2310×3110 |
30 |
| PE-900×1200 |
900×1200 |
750 |
95-210 |
140-450 |
8 |
130 |
3789×2826×3025 |
50 |
| PE-1000×1200 |
1000×1200 |
850 |
110-235 |
160-550 |
8 |
160 |
3889×2826×3025 |
57 |
| PE-1200×1500 |
1200×1500 |
1020 |
150-300 |
400-800 |
8 |
180 |
4590×3342×3553 |
100.9 |
| PEX-250×750 |
250×750 |
210 |
25-60 |
15-30 |
6 |
22 |
1750×1500×1420 |
5 |
| PEX-250×1000 |
250×1000 |
210 |
25-60 |
16-52 |
6 |
30 |
1940×1650×1450 |
7 |
| PEX-250×1200 |
250×1200 |
210 |
25-60 |
20-65 |
6 |
37 |
1940×1850×1450 |
7.7 |
| PEX-300×1300 |
300×1300 |
250 |
25-100 |
20-90 |
6 |
55 |
2285×2000×1720 |
11 |
Welcome to Zhengzhou YUFENG Machinery Company.If you want to more information about our Jaw Crusher, Please give us the message, we will reply as soon as possible.
