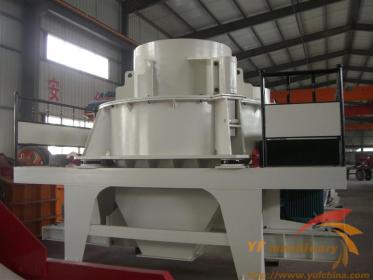

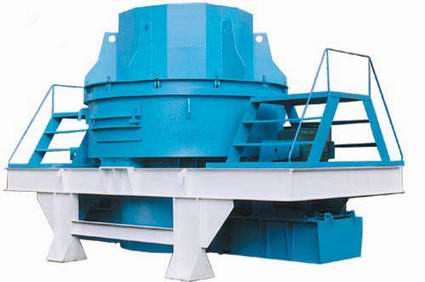

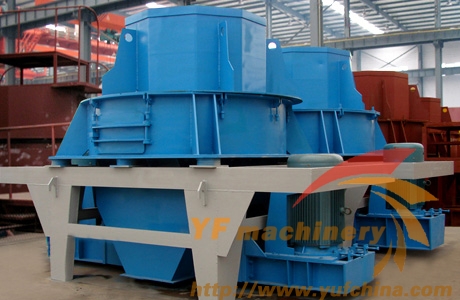

PCL Sand Making Machine
PCL Sand Making Machine Application:
PCL Sand Making Machine wide application, its performance has reached the international advanced level, and is one of the most effective, practical and reliable gravel machine, especially suitable for making abrasive,refractory material, cement, quartz sand, steel grit, slag powder, copper ore, iron ore, gold ore, concrete aggregate, asphalt aggregates and so on many kinds of hard, brittle materials of finely and medium broken, is a kind of high efficient, energy saving system of rubble sand blasting equipment, this PCL Sand Making Machine save energy than traditional save 50%, is the world's advanced sand maker equipment.
PCL Sand Making Machine Characteristic:
sand maker Simple structure and low operating cost;
High crushing ratio with low consumption;
Function of fine crushing and crude grinding;
Slightly influenced by moisture content of material, and the max moisture content is about 8%;
More suitable for crushing mid-hardness and high hardness materials;
Cubic shape of final products, high density of piling up and low iron pollution;
More wearable and easier maintenance;
Low working noise (lower than 75 decibel) and light dust pollution.
PCL Sand Making Machine Working Principle:
PCL sand making machine is mainly consistent of feed tube, impeller, and distribution cone. During operation, its two motors drive the impeller to turn round. The speed of impeller will arrive at 75 meter/second. Therefore, as one part of the materials are divided by the feed tube and directly entering into the rotating impeller, they will fly away from the three runner plates of the impeller. the materials will impact with some materials falling around classifier, then impact on the whirlpool cavity's scale board together, then will be rebounded and impact on the top of whirlpool cavity, then changes its direction and goes down, forms continual material layers with the materials shot from the impeller.
Through this way, the materials are all crushed for several times at high speed and with hard crushing plates. And finally the crushed materials will be exhausted from the distribution cone at the bottom. In the whole crushing process, the materials shock, crush and smash with each other, not directly impacting with the machines.
Therefore, the powder in the end product is reduced, the work life of the machines wearing part is extended, the pollution to the environment is decreased and the materials can be crushed into 20 meshes with perfect shape. Airflow self-circulation in the whirlpool cavity can well eliminate the dust pollution.
PCL Sand Making Machine Technicial Parameters
Model |
Rotate speed of
impeller (r/min) |
Max feed
size (mm) |
Power
(kW) |
Weight
(including motor)(t) |
Capacity
(t/h) |
Overall dimensions
(mm) |
PCL-600 |
2000-2600 |
30 |
2×30 |
5.6 |
10-30 |
2800×1550×2030 |
PCL-750 |
1600-2100 |
35 |
2×45 |
7.5 |
30-50 |
3300×1800×2440 |
PCL-900 |
1300-1700 |
40 |
2×55 |
12 |
50-80 |
3750×2120×2660 |
PCL-1050 |
1100-1450 |
45 |
2×110 |
16 |
70-120 |
4480×2450×2906 |
PCL-1250 |
950-1200 |
45 |
2×132 |
22 |
80-150 |
4563×2650×3176 |
PCL-1350 |
900-1200 |
50 |
2×160 |
26 |
120-200 |
5340×2940×3650 |
Welcome to Zhengzhou YUFENG Machinery Company.If you want to more information about our PCL Sand Making Machine, Please give us the message, we will reply as soon as possible.
