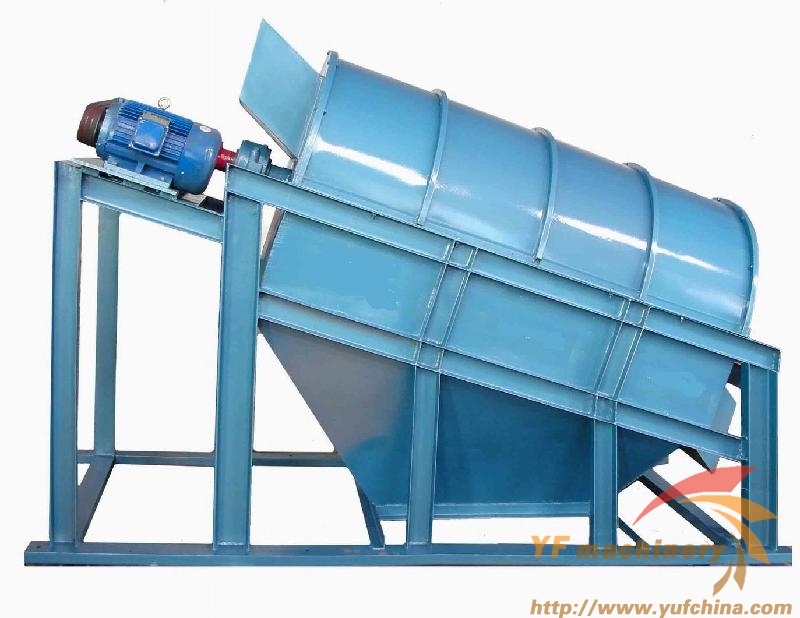

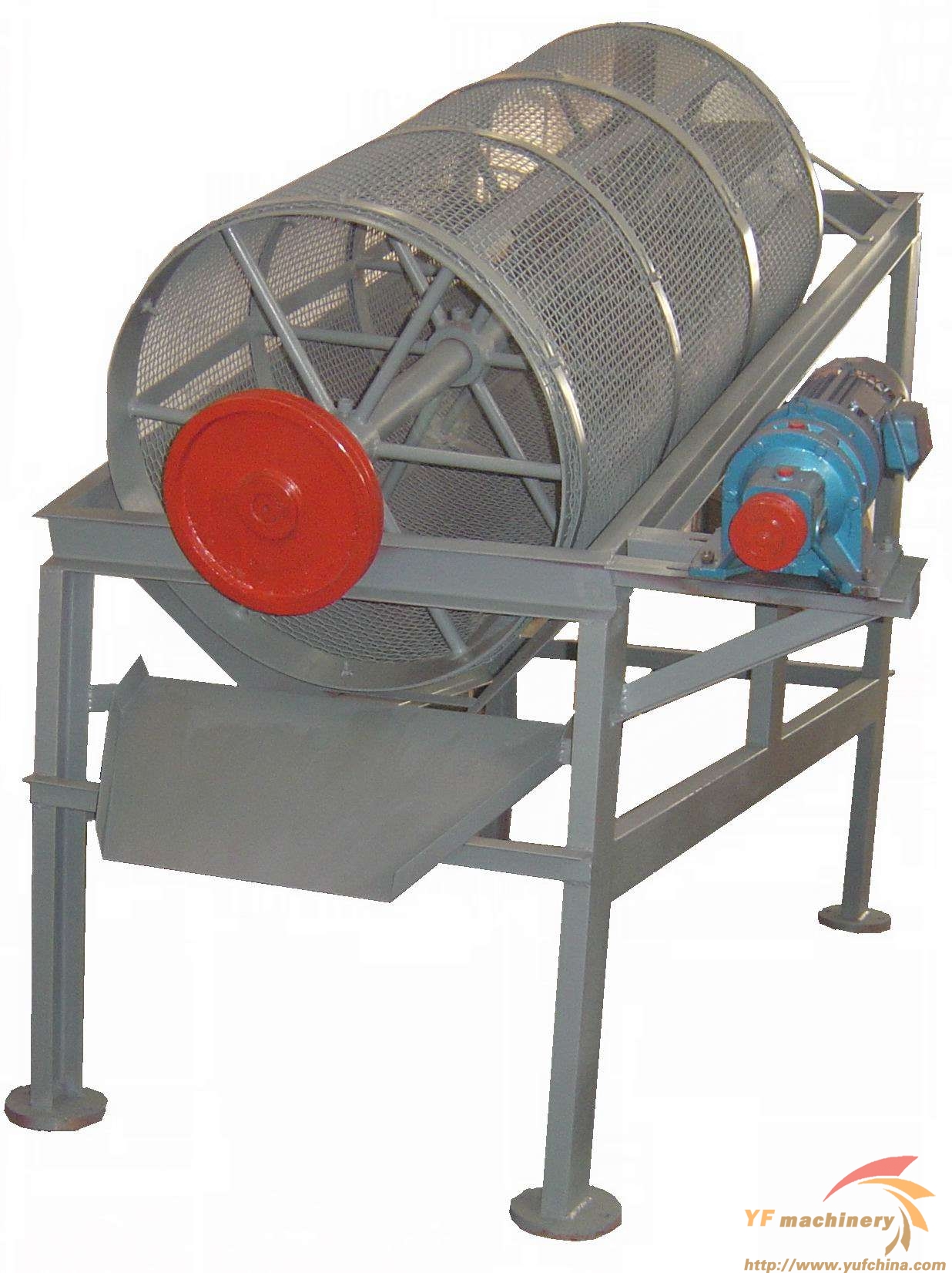

Trommel screen
The Trommel screen provides a simple, efficient and economical solution to upgrade a wide rang of materials and optimize
the subsequent process steps of recovery. This Trommel Screen method of screening helps to reduce operating and investment cost and to
enhance product quality with rapid and large volume processing.
The material is then Trommel Screen passed on to the downstream process equipment which can be in various forms such as centrifugal
concentrator, spirals, jigs etc.
Trommel screen Working principle
Material is fed into the trommel and lifted up by the rotation and aerated as it falls back down. This Trommel Screen action is repeated with
each revolution along the length of the trommel. The finer material passes through the screen openings while the larger
material tumbles towards its eventual exit at the rear of the trommel.
Trommel screen Application
The Trommel screen is widely used for screening and classifying mineral materials, such as metallurgy, mining, chemical,
coal, building materials, abrasives, and other industries.
1.Quarry: suitable for screening and classifying gravel, clay, mountain meal, sand, etc.
2.Coal Industry: suitable for screening and classifying lump coal, coal dust, coal washing, etc.
3.Chemical, Mineral-selecting Industry: suitable for grading and classifying lump, powder substance, etc.
4. Metallurgy, construction and other industries
Trommel screen Features
1 Include single, double, and muti layer type
2 Strong processing ability
3 Easy maintenance and long life
4 High-efficient and power-saving
5 Simple and various feeding ways
6 non-pollution and low noise
Trommel screen Technicial Parameters
|
Model
|
Specification
(m)
|
Slope
|
Rotary speed
|
Sieve pore(mm)
|
Max feeding size (mm)
|
Production capacity(m3/h)
|
Motor power
(kw)
|
|
Sieve pore(2mm)
|
Sieve pore(20mm)
|
|
GTS820
|
Φ0.8X2
|
6°
|
32
|
2-20
|
Mesh size X2.5
|
7
|
30
|
3
|
|
GTS830
|
Φ0.8X3
|
6°
|
32
|
2-20
|
Mesh size X2.5
|
8
|
50
|
3
|
|
GTS1030
|
Φ1X3
|
6°
|
25
|
2-20
|
Mesh size X2.5
|
10
|
60
|
4
|
|
GTS1040
|
Φ1X4
|
6°
|
25
|
2-20
|
Mesh size X2.5
|
11
|
80
|
4
|
|
GTS1230
|
Φ1.2X3
|
6°
|
20
|
2-20
|
Mesh size X2.5
|
12
|
100
|
5.5
|
|
GTS1240
|
Φ1.2X4
|
6°
|
20
|
2-20
|
Mesh size X2.5
|
14
|
120
|
5.5
|
|
GTS1250
|
Φ1.2X5
|
6°
|
20
|
2-20
|
Mesh size X2.5
|
15
|
140
|
5.5
|
|
GTS1530
|
Φ1.5X3
|
6°
|
17
|
2-20
|
Mesh size X2.5
|
16
|
120
|
5.5
|
|
GTS1540
|
Φ1.5X4
|
6°
|
17
|
2-20
|
Mesh size X2.5
|
18
|
150
|
7.5
|
|
GTS1550
|
Φ1.5X5
|
6°
|
17
|
2-20
|
Mesh size X2.5
|
20
|
180
|
11
|
|
GTS1560
|
Φ1.5X5
|
6°
|
17
|
2-20
|
Mesh size X2.5
|
22
|
200
|
11
|
Welcome to Zhengzhou YUFENG Machinery Company.If you want to more information about our Trommel screen, Please give us the message, we will reply as soon as possible.
|
