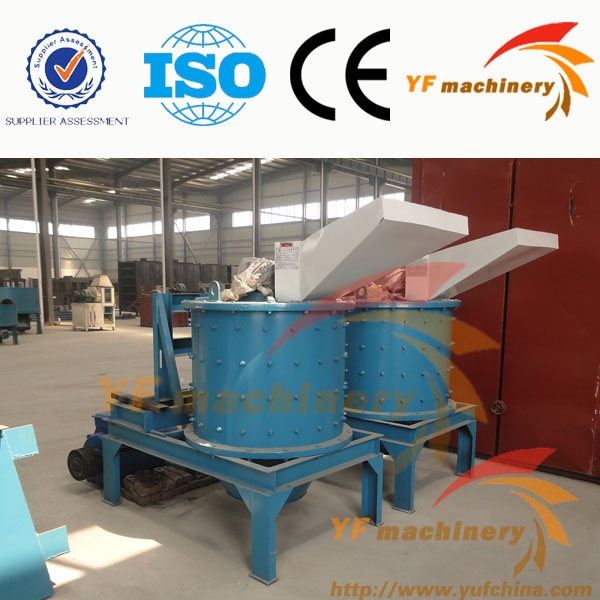

vertical combination crusher
Combination Crusher Application:
The vertical combination crusher is a new type of fine crushing and rough milling product after optimizing and designing the main technical parameter and combining the crushing technologies domestic and international. It is mainly used to crush crude cement materials and grogs in medium-sized factory, providing an ideal fine crushing equipment for the technological innovation of cement factories or setting up the cement production line. It is also applicable for crushing iron ore, sandstone, gypsum, blast furnace residue, coal stone, piece coal, and many other ores of medium hardness, characterized by the large crushing ratio, little energy consumption, stable run, simple structure, and convenient maintenance and operation.
The vertical combination crusher can be used as a vertical crusher, coal crusher, stone crusher apply to crushing industry
Vertical composite crusher, synthesis of domestic and foreign similar technology crusher, the main technical parameter optimization is meticulous research and development of a new equipment, mainly used for small and medium-sized cement clinker finely homework, unripe, but also be used for iron ore, sandstone, gypsum, dolomite, coal, gold, serpentine, blast furnace slags, gangue, phosphate rock medium hardness materials, compressive strength does not exceed 140 mpa, humidity does not exceed 15%.
Vertical Combination Crusher Feature:
1) Suitable for dry and wet crushing with high reduction ratio;
2) Perfect for crushing materials with high moisture;
3) Discharging size can be adjusted freely;
4) High silt content materials will not be blocked;
5) Materials that can not be crushed will be discharged automatically and do no damage to the machine;
6) Materials flow directly and high production efficiency;
7)Special structure, fluent operation, low noise pollution and simple maintenance;
8) Easy to change wearing parts by opening the manhole.
Combination Crusher Working Principle:
Raw material is fed from the top of combination crusher, and fall into the rotating impeller at a high speed to be crushed. As other materials simultaneously fall around the rotating impeller, the two kinds of materials join together and are crushed by each other. The materials are crushed many times in and around the impeller of combination crusher, and are finally discharged beneath the machine. Via a closed loop, controlled by screening equipment, the product achieves its required final size.
Vertical Combination Crusher Technicial Parameters
| Model |
Inlet Dia. mm |
Capacity t/h |
feeding size (mm) |
dischage size (mm) |
shafe rotary speed r/min |
motor |
dimension L×W×H mm |
Weight t |
| model |
power kw |
| PCL750 |
750 |
12-15 |
≤80 |
0-5 |
720 |
Y200L-4 |
30 |
2000×1100×1375 |
3.1 |
| PCL1000 |
1000 |
25-30 |
≤90 |
0-6 |
500 |
Y280M-6 |
55 |
2690×1500×1600 |
4.6 |
| PCL1250 |
1250 |
35-40 |
≤100 |
0-7 |
420 |
Y315M1-8 |
75 |
3270×1600×1900 |
6 |
| PCL1500 |
1500 |
55-70 |
≤120 |
0-8 |
400 |
Y315M3-8 |
110 |
3400×2000×2300 |
9.5 |
| PCL1750 |
1750 |
80-100 |
≤150 |
0-9 |
380 |
Y315M3-8 |
160 |
3710×2360×2390 |
15 |
| PCL2000 |
2000 |
110-130 |
≤180 |
0-10 |
370 |
Y315M3-8 |
185 |
4100×2660×2620 |
20 |
Welcome to Zhengzhou YUFENG Machinery Company.If you want to more information about our vertical combination crusher, Please give us the message, we will reply as soon as possible.
|
