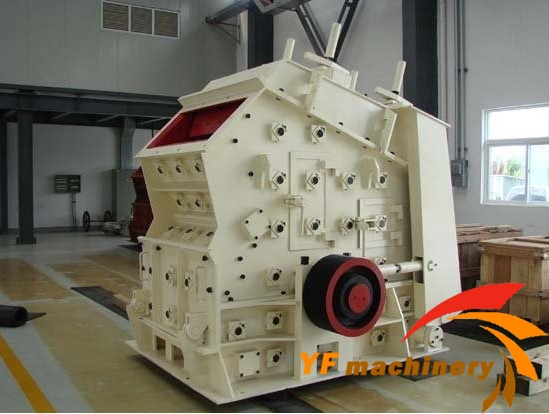

YUFENG Impact Crusher
The Impact Crusher, also called counterattack impact crusher, crushes stones under the impact force produced
by the impellers, so it is also called impact rotary crusher.Impact Crusher is mainly used in secondary crushing,
and can crush material its crushing compression strength not more than 320 MPa. It is suitable to produce
aggregate for highway, hydroelectric and building material industry, etc.
Impact Crusher Features:
1 Impact Crusher Many cavity to crush, suitable for crushing hard rock.
2. Use the hydraulic to open, easy to maintain and change wear-parts.
3. New anti-abrasive material makes longer service life of impact bar, impact plate and line.
4. Reasonable design of leveling plate making charge finer and cubic without interior cracks.
5. Low and big feed opening makes the production line easy to arrange and increase the size of feeding material.
7.Impact Crusher Lining design standardization, interchangeability of spare parts, reduce the user types and inventory, and replaced
more easily.
8.Rotor welding processing, assembly is required to do static, dynamic balance test, allowing the rotor to run more
smoothly, the use of a longer time.
9.Back frame and the grinding frame adjustment has the advantages of simple structure, easy operation, not easy to
damage, and convenient repair, low cost.
6. Impact Crusher Unique plate hammer locking device, fastening torque greater, more secure, more simple, convenient replacement
of the plate hammer, fast.
7.The unique design of the hydraulic device, which can facilitate the user to easily open rack, replacement parts, but
also on the back frame adjustment of the discharge hole.
8.Simple locking device, the back broken shell and shell two is tightly locked together. The device has the advantages
of simple operation, convenient, save the locking time.
9.Impact Crusher versatility, two cavity crushing equipment without change in other parts of the foundation, increase the grinding
frame, can be turned into a three cavity crushing equipment, reduce user two investment.
10.Heavy rotor, finite element stress analysis, optimization design, structure more reasonable, moment of inertia is greater,
more than broken, broken ability, stronger abrasion resistance.
11.The spindle adopts the high quality forgings machining, while the shaft without keys design, using the advanced
international expansion sets tight connecting way, can make the equipment run more reliable, more convenient
maintenance.

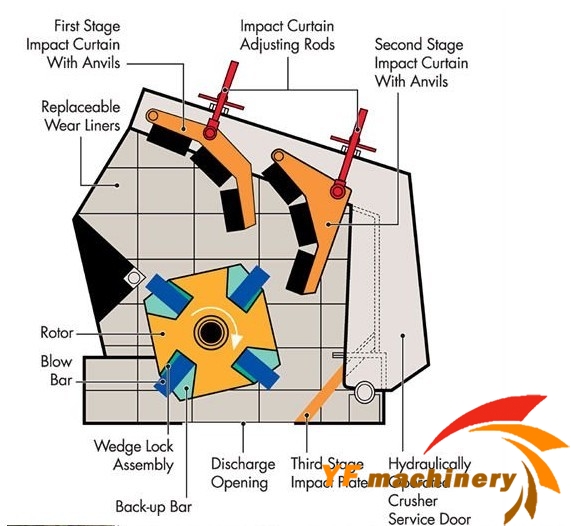

Working Principle of Impact Crusher
When the materials enter the field of the hammer, it is impacted by the hammers, thrown onto the impact plate, and crushed.
The stuff springs from the impact plate, is impacted by the hammers again, and thrown onto impact plate. This process will
last until the stuff meets the requirement and falls from the machine. Adjusting the distance between impact frame and rotor
frame can change the shape and size of the output. When some foreign stuff enters the machine, the impact frame will
fallback, the stuff falls from the machine. This device can prevent machine from damages.
Specification and Technical Parameter
| Model |
Specification (mm) |
Feed Opening (mm) |
Max.Feeding
Size(mm) |
Capacity (t/h) |
Model of Motor |
Power (kw) |
Weight (t) |
Overall Dimensions
(L×W×H) (mm) |
| PF-1007 |
Φ1000×700 |
400×730 |
300 |
35-50 |
Y250M-6 |
37 |
9.5 |
1800×1600×1800 |
| PF-1010 |
Φ1000×1050 |
400×1080 |
350 |
50-80 |
Y315S-6 |
75 |
14 |
2340×2007×2500 |
| PF-1210 |
Φ1250×1050 |
400×1080 |
350 |
70-120 |
Y315L1-6 |
110 |
17 |
2582×2053×2809
|
| PF-1212 |
Φ1250×1200 |
400×1250 |
350 |
70-140 |
Y315L2-6 |
132 |
17.5 |
2582×2203×2809
|
| PF-1214 |
Φ1250×1400 |
400×1430 |
350 |
80-160 |
Y315L2-6 |
132 |
22 |
2582×2403×2809 |
| PF-1315 |
Φ1300×1500 |
860×1520 |
500 |
90-220 |
Y2-355M2-6 |
200 |
26 |
2930×2761×3053 |
PF series impact crushers are widely used all over the world in recent 20 years. The technologies and applications
of mobile impact crusher, impact stone crusher, mineral impact crusher and other impact crushing machine are
the main developing trends in stone crushing plant. It has been proved that this series of crushers can effectively
increase productivity and final product quality. And they can also greatly reduce the investment costs and operation
costs. Incomparable excellent performance is shown in the secondary crushing, tertiary crushing and material
recovery. We offer several models of high-quality impact crushers used in both primary and secondary crushing applications of aggregate.
Welcome to Zhengzhou YUFENG Machinery Company.If you want to more information about our Impact Crusher, Please give us the message, we will reply as soon as possible.
|
