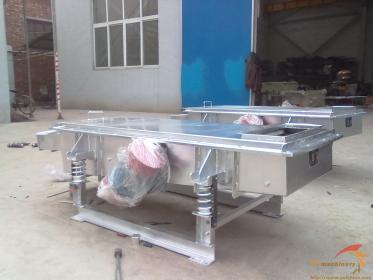

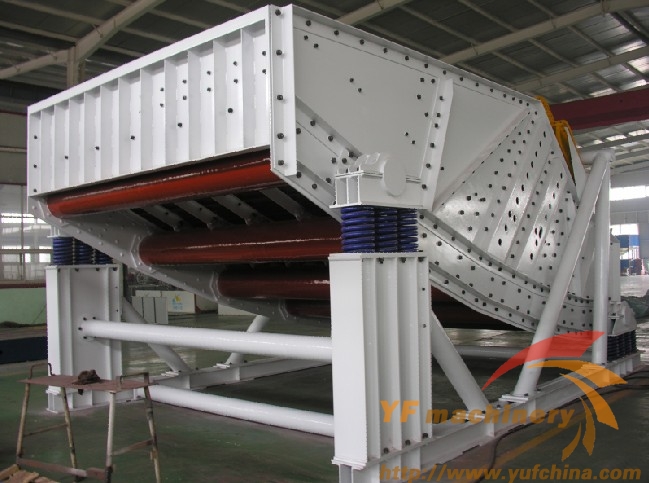

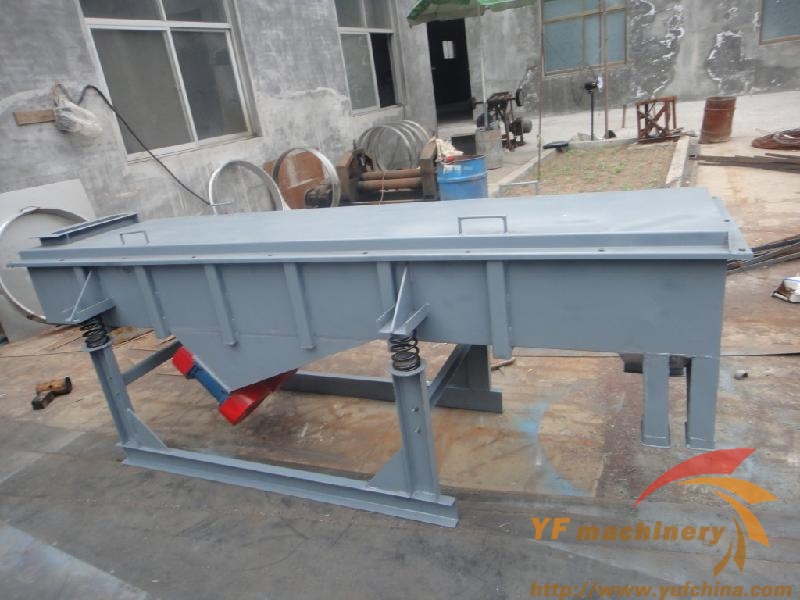

Linear Vibrating Screen
ZSG series of linear vibrating screens are widely applied to screen dry materials in ore dressing, building materials, water and power, light industry and building materials. The advantaged of this vibrating screen series screen are as follows: stable operation, lower energy consumption, low noise, high efficiency and long service life.
ZSG Linear Vibrating Screen using vibrating motor as vibration source to make the materials be thrown on screen surface, at the same time make the sport straight line forward. This
linear vibrating screens device can be equipped with single or multilayer screen to achieve the grading, impurity removing, powder sifting, testing and end washing purposes and so on. It main components: motor, screen, frame, in feed hopper and output hopper, etc.
Linear Vibrating Screen Technicial Parameters
Model |
specification |
Layer |
Mesh size
(mm) |
Feeding size(mm) |
Capacity
(t/h) |
Power
(kw) |
Weight
(t) |
Obliquity
(º ) |
Overall dimensions
(L×W×H(mm) |
ZSG1224 |
2400×
1200 |
1 |
4-50 |
≤200 |
10-100 |
5.5×2 |
1550 |
15 |
2500×2050×1850 |
ZSG1237 |
3700×1200 |
1 |
4-50 |
≤200 |
10-100 |
5.5×2 |
1750 |
15 |
3800×2050×1920 |
2ZSG1237 |
3700×1200 |
2 |
4-50 |
≤200 |
10-100 |
5.5×2 |
2345 |
15 |
3800×2050×2200 |
ZSG1443 |
4300×1400 |
1 |
4-50 |
≤200 |
10-150 |
5.5×2 |
4100 |
15 |
4500×3040×2500 |
2ZSG1443 |
4300×1400 |
2 |
4-50 |
≤200 |
10-150 |
5.5×2 |
4900 |
15 |
4500×3040×2700 |
3ZSG1443 |
4300×1400 |
3 |
4-50 |
≤200 |
10-150 |
5.5×2 |
5270 |
15 |
4500×3040×2820 |
2ZSG1548 |
4800×1500 |
2 |
5-50 |
≤200 |
15-200 |
7.5×2 |
5336 |
15 |
4800×3140×2814 |
3ZSG1548 |
4800×1500 |
3 |
5-50 |
≤200 |
15-200 |
7.5×2 |
5900 |
15 |
4799×3140×3014 |
2ZSG1848 |
4800×1800 |
2 |
5-50 |
≤300 |
50-500 |
7.5×2 |
6189 |
15 |
4799×3440×2814 |
3ZSG1848 |
4800×1800 |
3 |
5-50 |
≤300 |
50-500 |
7.5×2 |
6750 |
15 |
4799×3440×3014 |
4ZSG1848 |
4800×1800 |
4 |
5-50 |
≤200 |
50-500 |
11×2 |
7000 |
15 |
4799×3440×3503 |
2ZSG1860 |
6000×1800 |
2 |
5-150 |
≤300 |
80-600 |
11×2 |
8950 |
15 |
6000×3440×3326 |
Welcome to Zhengzhou YUFENG Machinery Company.If you want to more information about our Linear Vibrating Screen, Please give us the message, we will reply as soon as possible.
