PCH Ring Hammer Stone Crusher
The PCH Ring Hammer Stone Crusher is used for crushing various fragile materials which are moderately hard and have
weak corrosivity, such as gangue, coal, salt, chalk, gypsum, tile, limeStone, coke, red sandStone, slag, shale, etc.
Both dry crushing and wet crushing are available. The ring hammer Stone Crusher can also be applied for crushing fiber structure,
scrap wood which has strong elasticity and toughness, waste paper, broken asbestos cement, etc.
Ring Hammer Stone Crusher Features
1. The ring hammer Stone Crusher is designed with a simple structure, large crushing ratio and high production efficiency.
2. It is highly efficient and energy saving, and causes low noise and little dust.
3. The space between grid sections can be adjusted to change discharging granularity in line with clients’ needs.
4. The alloy hammerhead has excellent corrosion resistance and its service life is 1.5~2 times that of normal high manganese steel.
Ring Hammer Stone Crusher Application
The ring hammer Stone Crusher is used for crushing moderately hard and fragile materials in the mining, cement, coal, metallurgy,
building materials, and road industries, etc. Not only can the ring hammer Stone Crusher be applied in crushing production line and
sand making production line, but it also replaces the cone Stone Crusher in beneficiation production line.
Main technical parameters of Ring Hammer Stone Crusher:
|
Model
|
Feeding Size(mm)
|
Discharging size(mm)
|
Capacity(t/h)
|
Rotor speed(r/min)
|
Motor
|
Weight(t)
|
|
Model
|
Power
|
|
PCH0402
|
<=200
|
<=30
|
8-12
|
960
|
Y132M2-6
|
5.5
|
0.8
|
|
PCH0404
|
<=200
|
<=30
|
16-25
|
970
|
Y160L-6
|
11
|
1.05
|
|
PCH0604
|
<=200
|
<=30
|
22-33
|
970
|
Y180L-6
|
15
|
1.43
|
|
PCH0606
|
<=200
|
<=30
|
30-60
|
980
|
Y225M-6
|
30
|
1.77
|
|
PCH0808
|
<=200
|
<=30
|
70-105
|
740
|
Y280M-8
|
45
|
3.6
|
|
PCH1010
|
<=200
|
<=30
|
160-200
|
740
|
Y315M2-8
|
90
|
6.1
|
|
PCH1016
|
<=300
|
<=30
|
300-350
|
740
|
JS-128-8
|
155
|
9.2
|
|
PCH1216
|
<=350
|
<=30
|
620-800
|
740
|
Y450-8
|
355
|
15.0
|
|
PCH1616
|
<=400
|
<=30
|
700-900
|
740
|
YKK5001-8
|
400
|
19.3
|

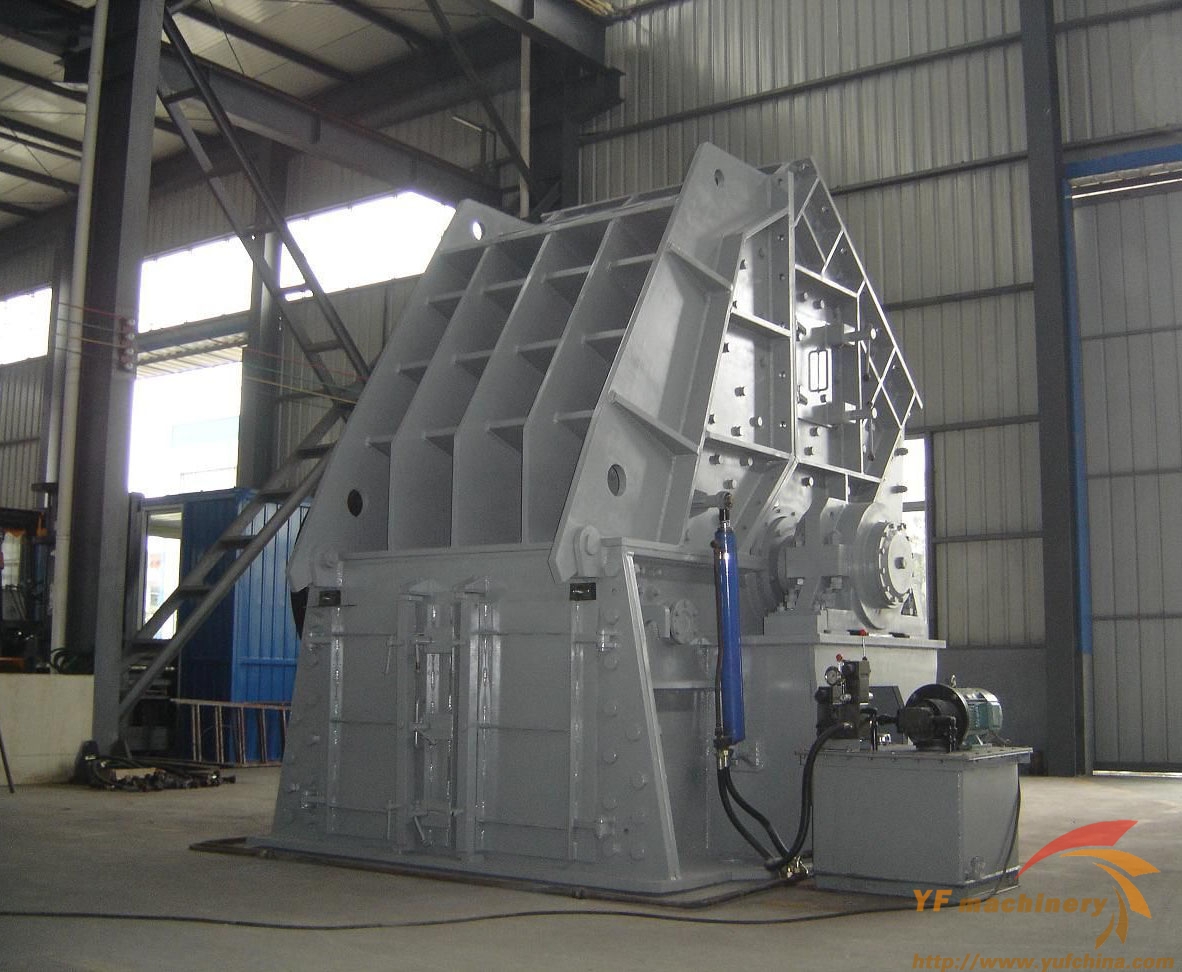

Heavy Hammer Crusher
Technical parameter of Heavy Hammer Crusher:
|
Type
|
Rotor diameter*Length
(mm)
|
Feed size(adjustable)(mm)
|
Discharge size
(mm)
|
Capacity
(t/h)
|
Power
(kw)
|
weight
(t)
|
|
0806
|
800*600
|
≤300-400
|
0-40
|
60
|
55
|
3.8
|
|
0808
|
800*800
|
≤400-500
|
0-50
|
80-100
|
75
|
6.5
|
|
1008
|
1000*800
|
≤500-650
|
0-60
|
100-120
|
90
|
8
|
|
1010
|
1000*1000
|
≤600-750
|
0-70
|
120-150
|
132
|
11.5
|
|
1210
|
1200*1000
|
≤650-800
|
0-70
|
150-200
|
185
|
14
|
|
1510
|
1500*950
|
≤800
|
0-80
|
160-250
|
200
|
17.5
|
|
1512
|
1500*1160
|
≤800
|
0-80
|
250-300
|
250
|
19
|
|
1615
|
1650*1450
|
≤900
|
0-80
|
200-380
|
280
|
28
|
|
2015
|
2000*1500
|
≤1200
|
0-80
|
400-500
|
400
|
32
|
Welcome to Zhengzhou YUFENG Machinery Company.If you want to more information about our PCH Ring Hammer Stone Crusher, Please give us the message, we will reply as soon as possible.

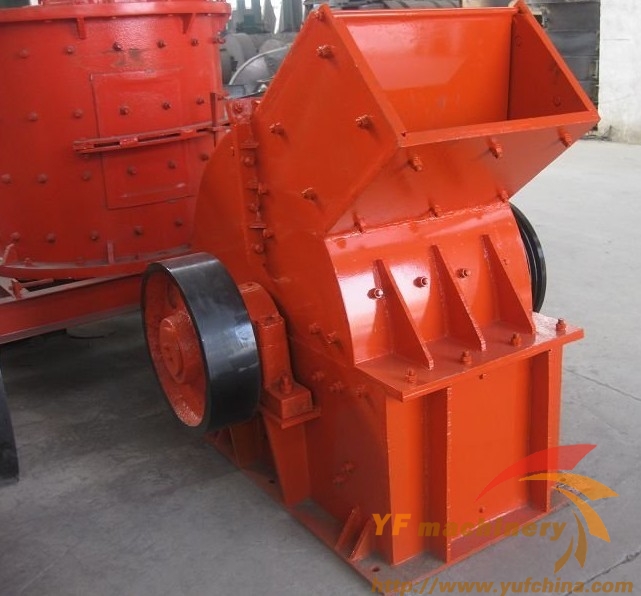

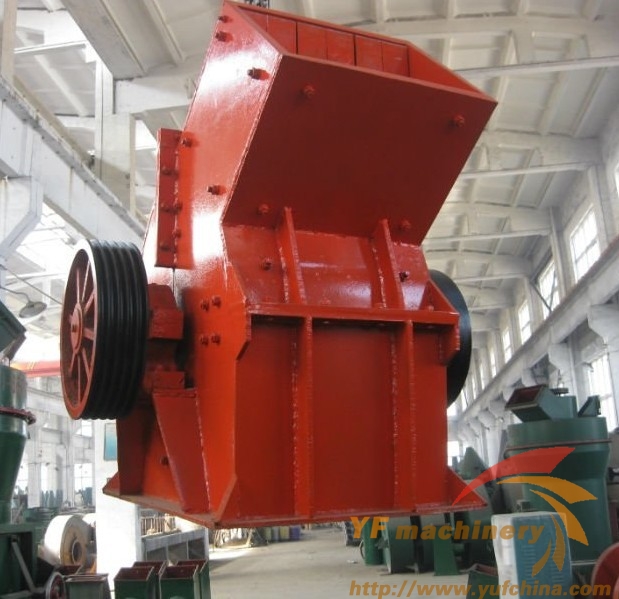

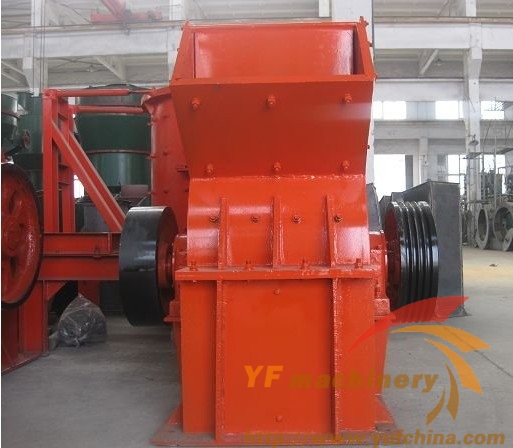

Hammer Crusher/ Hammer Mill
Application of Hammer Crusher/ Hammer Mill:
Hammer crusher is applied to crushing medium hard and weak corrosive materials. They are coal, salt, chalk, gypsum, brick, limestone, etc. The compressive strength of these materials does not exceed 100Mpa, and the moisture is less than 15%. The hammer crusher is also could be used to crush broken wood, paper with fiber structure, strong flexibility and toughness, and also the waste of asbestos cement, in order to recover the asbestos fiber, and so on. In addition, the hammer crusher is not only could be used in the stone crushing production line, stone production line, but also could be replaced by the cone crusher in the mineral production line.
Advantages of the Hammer Crusher/ Hammer Mill:
Hammer Crusher Large crushing ratio(general 10-25, and the highest is up to 50), high production capacity, low consumption, simple structure, easy maintenance.
Hammer Crusher The hammer adopts new technology, and has the feature of wear and impact resistance.
The granularity could be adjusted according to the require of the customers.
Sealed body, avoid the dust pollution and leakage.
Disadvantages of the hammer crusher:
The hammer and the sieve article wear easily, especially crushing hard materials.
When crushing sticky materials, the sieve article will be stocked by the materials, and will cause downtime. So the moisture of the material should not exceed 15%.
Working Principle of the Hammer Crusher:
Hammer crusher crush materials mainly by the shock effect to the materials. Crushing process is roughly like this: materials enter into the crusher, and then are hit by the hammer with high-speed rotation. The broken materials obtain kinetic energy from the hammer, and then run toward the baffles, sieve article. At the same time, materials impact each other, and been repeatedly broken, some of the materials discharged from the gap of the sieve article, and some bigger materials will be impacted, grinded again by the hammer, and become the products with required granularity.
Hammer crusher Data
|
|
Feeding Size
(mm)
|
Discharging size
(mm)
|
Capacity
(m3/h)
|
Motor
Power(kw)
|
Total weight(t)
|
Dimensions
(L×W×H)(mm)
|
|
PCΦ400×300
|
≤200
|
≤25
|
5-10
|
11
|
0.8
|
900×670×860
|
|
PCΦ600×400
|
≤250
|
≤30
|
10-22
|
22
|
2.26
|
1200×1050×1200
|
|
PCΦ800×600
|
≤250
|
≤35
|
18-40
|
55
|
4.8
|
1310×1180×1310
|
|
PCΦ1000×800
|
≤350
|
≤35
|
25-50
|
75
|
5.9
|
1600×1390×1575
|
|
PCΦ1000×1000
|
≤350
|
≤35
|
30-55
|
90
|
8
|
1800×1590×1775
|
|
PCΦ1250×1250
|
≤350
|
≤35
|
35-65
|
132
|
14
|
2060×1600×1890
|
|
PCΦ1400×1400
|
≤350
|
≤35
|
50-100
|
280
|
32
|
2365×1870×2220
|
|
PCΦ1600×1600
|
≤350
|
≤35
|
100-150
|
480
|
37.5
|
3050×2850×2800
|
Welcome to Zhengzhou YUFENG Machinery Company.If you want to more information about our Hammer Crusher, Please give us the message, we will reply as soon as possible.
