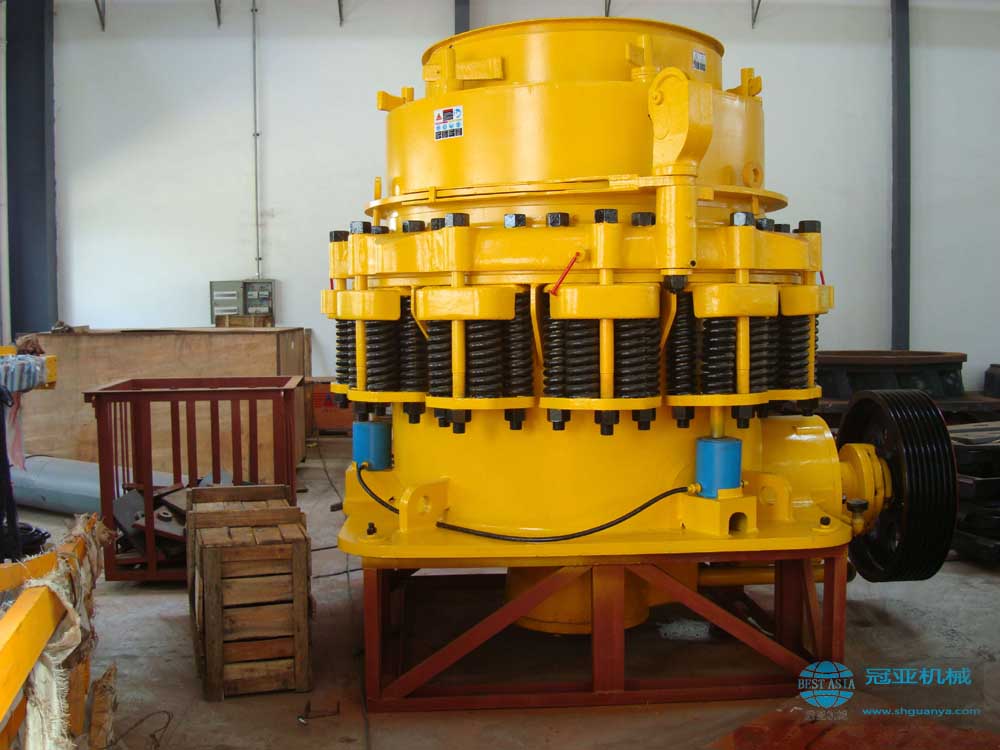

YUFENG PY series Cone Crusher
Cone Crusher Application:
- Primary and secondary hard rock crushing
- Mixed demolition debris
- Crushed or broken concrete
- Asphalt
- River rock
- Industrial applications
- Standard type is for PYZ (secondary crush); middle type is for PYD (tertiary crush); short-head type is for primary and secondary crush

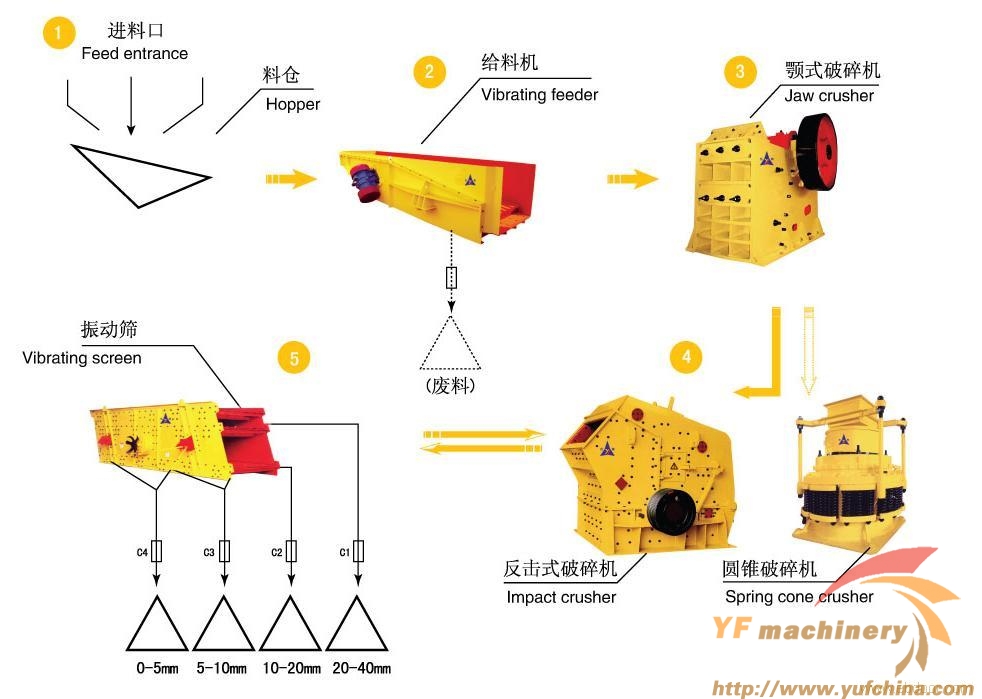

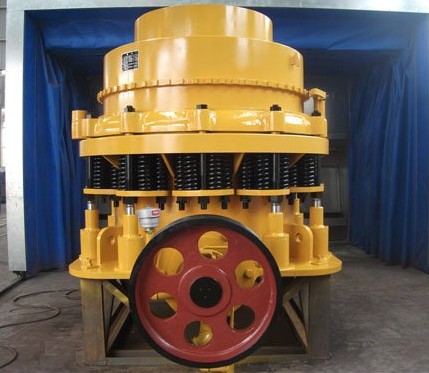

Working Principle of Spring Cone Crusher:
Spring Cone Crusher crushes materials by the working surface between the movable cone and fixed cone. So it is more advanced and efficiency than Jaw Crusher. Cone crusher The movable cone is supported by spherical bearing and fixed on an hanging erect shaft which is set in the eccentric sleeve, and the sleeve is set on the stopping and pushing bearing. Cone crusher The movable cone and erect shaft are driven by the eccentric shaft sleeve together. The eccentric shaft sleeve is driven by horizontal shaft and fimbriated gear, and the wheel of the conveyor belt is driven by motor through v-belts. Cone crusher The lower part of vertical shaft is installed in the eccentric sleeve. When the eccentric sleeve rotates, there is a conical surface lined out by the shaft. When the movable cone comes near the fixed cone, rocks are grinded into pieces, when the cone leaves, grinded materials is discharged from the discharge hole.Cone crusher The fixed cone can be ascended or descended by adjusting setting to adjust the width of discharge hole, consequently the output size is determined.
Technical Data of Spring Cone crusher:
| Model |
Diameter of Bottom End of Conical Crushing Head (mm) |
Max Feeding Size (mm) |
Adjustable Range of Discharge Opening (mm) |
Crushing Capacity
(t/h) |
Motor Power
(kw) |
Rev.of Eccentric Shaft (r/min) |
Weight (t) |
Overal Dimension (L×W×H) (mm) |
| PYB600 |
Φ600 |
75 |
12-15 |
20-40 |
8P-30 |
356 |
5 |
2234×1370×1675 |
| PYD600 |
Φ600 |
35 |
3-13 |
12-23 |
8P-30 |
356 |
5.5 |
2234×1370×1675 |
| PYB900 |
Φ900 |
115 |
15-50 |
50-90 |
8P-55 |
333 |
11.2 |
2692×1640×2350 |
| PYZ900 |
Φ900 |
60 |
5-20 |
20-65 |
8P-55 |
333 |
11.2 |
2692×1640×2350 |
| PYD900 |
Φ900 |
50 |
3-13 |
15-50 |
8P-55 |
333 |
11.3 |
2692×1640×2350 |
| PYB1200 |
Φ1200 |
145 |
20-50 |
110-168 |
8P-110 |
300 |
24.7 |
2790×1878×2844 |
| PYZ1200 |
Φ1200 |
100 |
8-25 |
42-135 |
8P-110 |
300 |
25 |
2790×1878×2844 |
| PYD1200 |
Φ1200 |
50 |
3-15 |
18-105 |
8P-110 |
300 |
25.3 |
2790×1878×2844 |
| PYB1750 |
Φ1750 |
215 |
25-50 |
280-480 |
8P-160 |
245 |
50.3 |
3910×2894×3809 |
| PYZ1750 |
Φ1750 |
185 |
10-30 |
115-320 |
8P-160 |
245 |
50.3 |
3910×2894×3809 |
| PYD1750 |
Φ1750 |
85 |
5-13 |
75-230 |
8P-160 |
245 |
50.2 |
3910×2894×3809 |
| PYB2200 |
Φ2200 |
300 |
30-60 |
590-1000 |
8P-(260-280) |
220 |
80 |
4622×3302×4470 |
| PYZ2200 |
Φ2200 |
230 |
10-30 |
200-580 |
8P-(260-280) |
220 |
80 |
4622×3302×4470 |
| PYD2200 |
Φ2200 |
100 |
5-15 |
120-340 |
8P-(260-280) |
220 |
81.4 |
4622×3302×4470 |
Cone Crusher Benefits:
- One-year warranty
- Continuing service commitment
- Global distribution
- Rapid delivery
- Off-the-shelf parts
- Superior quality
- Advanced materials & processes
- Improved service life of critical components
- Lower maintenance & operating costs

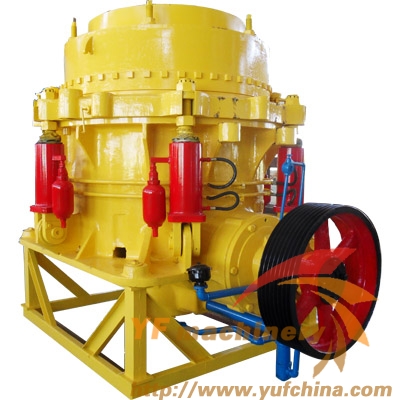

Hydraulic Cone Crusher Introduction:
Based on years of experience in manufacturing crushers, the hydraulic cone crusher manufactured by our company has introduced advanced technologies abroad Compared with ordinary crushers, this Cone crusher has a high crushing capacity and efficiency. Iron can pass through the crushing chamber with the dual channels that is controlled by the hydraulic system. Unlike the spring cone crusher which has to stop for maintenance when the machine stops working suddenly, this crusher does not need to in the case because the material will be discharged with the help of the hydraulic system.
Cone Crusher Composition:
The hydraulic cone crusher consists of the base, the eccentric sleeve, the transmission shaft, the fixed cone, the mobile cone, the feed opening and the hydraulic system.
Cone Crusher Working Principle:
Cone crusher during operation, the motor drives the sleeve to rotate through the belt wheel or coupling. Under the force of the rotating sleeve, the transmission shaft and the cone swing periodically, which makes the surface of the cone come near to the surface of the mantle periodically. The material is crushed and discharged during the process.
Hydraulic Cone Crusher Technical Data
| Model |
Cavity |
Min.discharge size
(mm) |
Inch
(mm) |
Capacity
(t/h) |
Motor power
(kw) |
Weight
(t) |
Dia.movable cone
(mm) |
| HPC-160 |
C |
13 |
150 |
120-240 |
160 |
13 |
950 |
| F |
6 |
76 |
55-180 |
| HPC-220 |
C |
13 |
225 |
150-430 |
220 |
18 |
1160 |
| F |
6 |
86 |
90-260 |
| HPC-315 |
C |
13 |
290 |
190-610 |
315 |
26 |
1400 |
| F |
6 |
100 |
108-320 |
| HPC-400 |
C |
13 |
320 |
230-700 |
400 |
33 |
1500 |
| F |
6 |
110 |
145-430 |
