400T/H-500T/H Stone crushing plant
Introduction
Raw materials: River stone, granite, basalt, shale, concrete, limestone, quartz stone, phosphate ore, bauxite, calcium carbide
Capacity：450-600 TPH
Max feeding size:1020mm
Application: Highway, high railway, hydroelectric dam construction, mechanism sandstone, construction waste recycling crushing and screening
Shipping ports: Shanghai, Qingdao or Tianjin
Delivery: 30-45 days
400T/H-500T/H Stone crushing plant is used to crush stone with less than 1100mm,such as hard limestone,granite,basalt,pebble. Product with various sizes can be made according to customers'special requirements in hydroelectric station,building materials,highway,railway,urban construction,etc. Impact crusher can be replaced by cone crusher according to customers'requirement or hardness of stone.

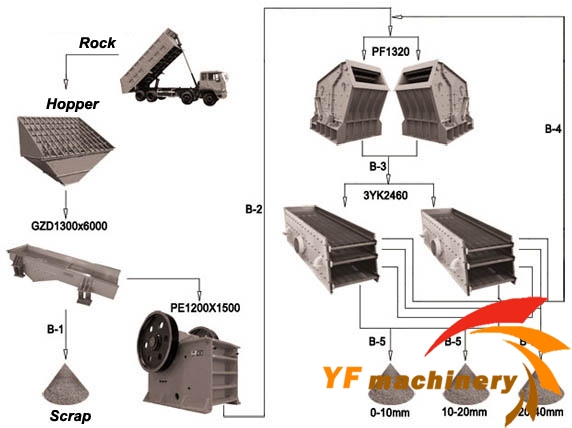

The Following project Flow Diagram and machine list is just for your reference, if you want to know more, pls contact us!
| No. |
Equipment |
Model |
Motor (KW) |
Number |
| |
Hopper |
LC3000X4000 |
|
1 |
| I |
Vribrating Feeder |
GZD1300x6000 |
15 |
1 |
| II |
Jaw Crusher |
PE1200x1500 |
180 |
1 |
| III |
Impact Crusher |
PF1320 |
315 |
2 |
| Ⅳ |
Vribrating Screen |
3YK2460 |
37 |
2 |
| Belt conveyor |
| No. |
Name |
Length (m) |
Motor (KW) |
Number |
| B1 |
B500 |
20 |
11 |
1 |
| B2 |
B1500 |
26 |
30 |
1 |
| B3 |
B1500 |
28 |
30 |
2 |
| B4 |
B1200 |
30 |
22 |
1 |
| B5 |
B800 |
20 |
11 |
6 |
400T/H-500T/H Stone crushing plant capacity stone crushing production line is designed considering depending on the materials being crushed, the requirement of the final products particle, local popular aggregate crushing plant flow chart and the investment cost.
Related Stone Crushing Production Line
YUFENG Group can offer complete stone crushing production line with the capacity of 30-50TPH, 50-80TPH, 80-100tph, 100-150TPH, 150-200TPH, 200-250TPH, 250-300TPH, 300-400TPH, 400-500 TPH, etc.
Welcome to Zhengzhou YUFENG Machinery Company.If you want to more information about our 400T/H-500T/H Stone crushing plant, Please give us the message, we will reply as soon as possible.
