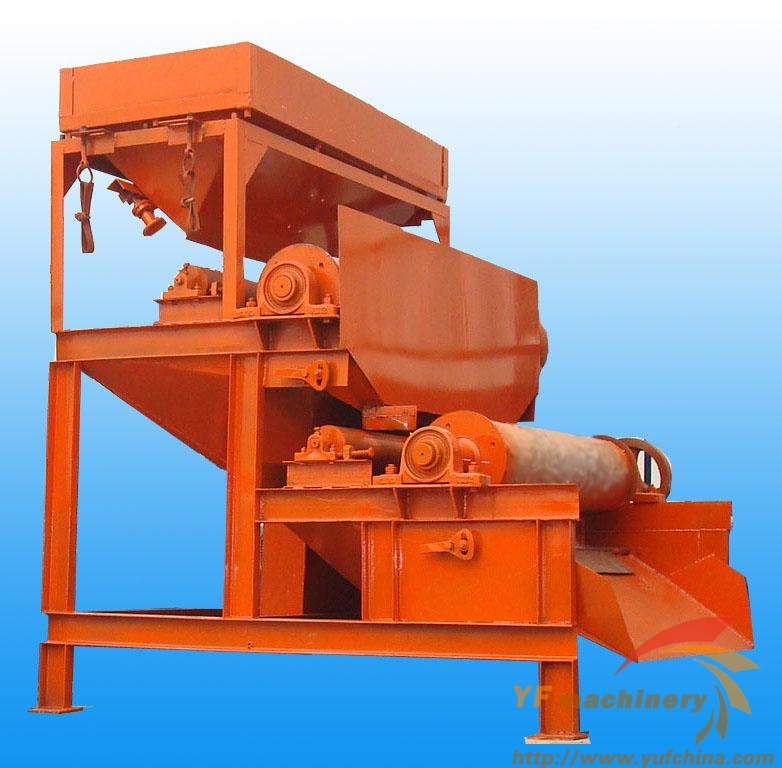

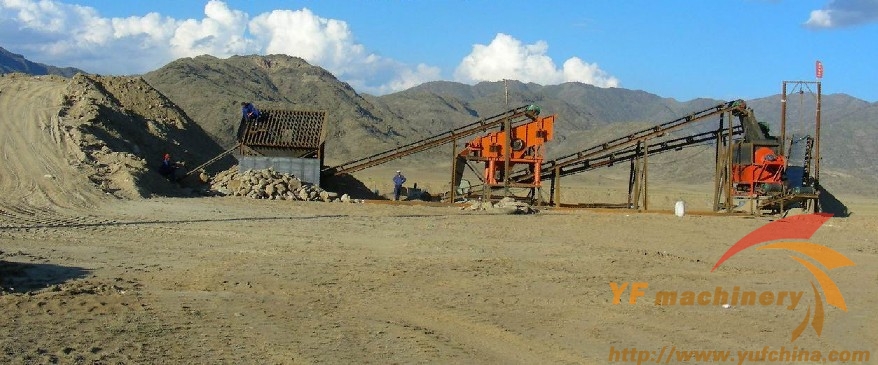

CTG series dry magnetic separator
CTG dry magnetic separator is widely used for the primary separation of 5%~20% low-grade magnetite iron ore or dry powder iron ore, dry magnetic separator effectively increasing the iron grade before grinding process, reducing the ore beneficiation cost, so the production efficiency can be highly improved. Besides, this dry magnetic separator can be used for the removal of ferrous elements from powdery or granular materials.
dry magnetic separator Technicial Parameters
| Model No. |
Specifications of magnetic drum
(mm) |
Rotary speed of drum
(r/min) |
Magnetic
Filed intensity |
Feeding size
(≤mm) |
Processing capacity
(t/h) |
Motor power
(kW) |
Outline dimensions
(mm) |
Weight
(kg) |
| Diameter |
Length |
| CTG-609 |
600 |
900 |
0~63 |
Determined according to mineral properties
|
7 |
5~10 |
5.5 |
2320 ×1020 ×1450 |
1800 |
| CTG-612 |
600 |
1200 |
0~63 |
7 |
10~15 |
5.5 |
2620 ×1020 ×1450 |
2000 |
| CTG-618 |
600 |
1800 |
0~63 |
7 |
15~20 |
7.5 |
3320x1020x1450 |
2500 |
| CTG-812 |
800 |
1200 |
0~63 |
7 |
20~25 |
7.5 |
2880 ×1420 ×1680 |
3000 |
| CTG-815 |
800 |
1500 |
0~63 |
7 |
30~35 |
11 |
3220 ×1420 ×1680 |
3600 |
| CTG-818 |
800 |
1800 |
0~63 |
7 |
40~45 |
11 |
3480 ×1420 ×1680 |
4200 |
| CTG-821 |
800 |
2100 |
0~63 |
10 |
60~65 |
11 |
3780 ×1420 ×1680 |
4500 |
| CTG-824 |
800 |
2400 |
0~63 |
10 |
80~85 |
11 |
4080×1420 ×1680 |
4800 |
| CTG-918 |
900 |
1800 |
0~50 |
10 |
90~110 |
11 |
3480x1600x1850 |
4600 |
| CTG-1030 |
1050 |
3000 |
0~50 |
12 |
115~150 |
11 |
5500x1600x1850 |
6500 |

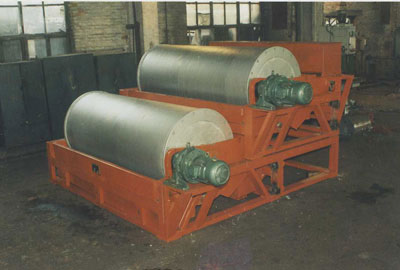

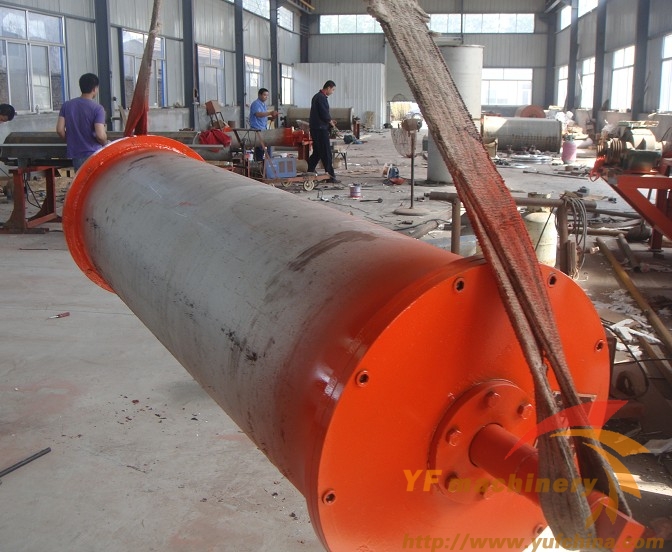

CTZ series high intensity permanent magnetic drum (magnetic pulley)
CTZ series permanent magnetic drum (magnetic pulley) is usually used for the purification treatment of powdery, granular, small block materials and the recycling of iron. Besides, this equipment can prevent the crushing machines, grinding machines and pressing machines from being damaged and abraded by tramp iron mixed in non-ferrous materials.
Features:
1. Easy to install and convenient to use.
2. Excellent magnetic field intensity.
3. No energy consumption itself.
4. High efficiency and stable performance.
Applications:
Widely used in metallurgy, ceramics, abrasives, carborundum, non-metallic minerals, refractory materials, mining, food, chemical, glass, building materials and other industries.
dry magnetic separator Technicial Parameters
| Model No. |
Diameter of drum (mm) |
Adaptive belt width (mm) |
Length of drum (mm) |
Magnetic field intensity (≥Gauss) |
Rotary Speed (r/min) |
Weight
(kg) |
|
| |
| CTZ-32/40 |
320 |
400 |
500 |
3000 |
20~30 |
120 |
|
| CTZ-32/50 |
320 |
500 |
600 |
3000 |
150 |
|
| CTZ-40/50 |
400 |
500 |
600 |
3000 |
240 |
|
| CTZ-50/50 |
500 |
500 |
600 |
3000 |
360 |
|
| CTZ-32/65 |
320 |
650 |
750 |
3000 |
210 |
|
| CTZ-40/65 |
400 |
650 |
750 |
3000 |
350 |
|
| CTZ-50/65 |
500 |
650 |
750 |
3000 |
420 |
|
| CTZ-63/65 |
630 |
650 |
750 |
3000 |
830 |
|
| CTZ-40/80 |
400 |
800 |
950 |
3000 |
470 |
|
| CTZ-50/80 |
500 |
800 |
950 |
3000 |
600 |
|
| CTZ-63/80 |
630 |
800 |
950 |
3000 |
800 |
|
| CTZ-80/80 |
800 |
800 |
950 |
4000 |
980 |
|
| CTZ-63/100 |
630 |
1000 |
1150 |
4000 |
1200 |
|
| CTZ-80/100 |
800 |
1000 |
1150 |
4000 |
1300 |
|
| CTZ-100/120 |
1000 |
1200 |
1400 |
4000 |
1580 |
|
| CTZ-125/140 |
1250 |
1400 |
1600 |
4000 |
1950 |

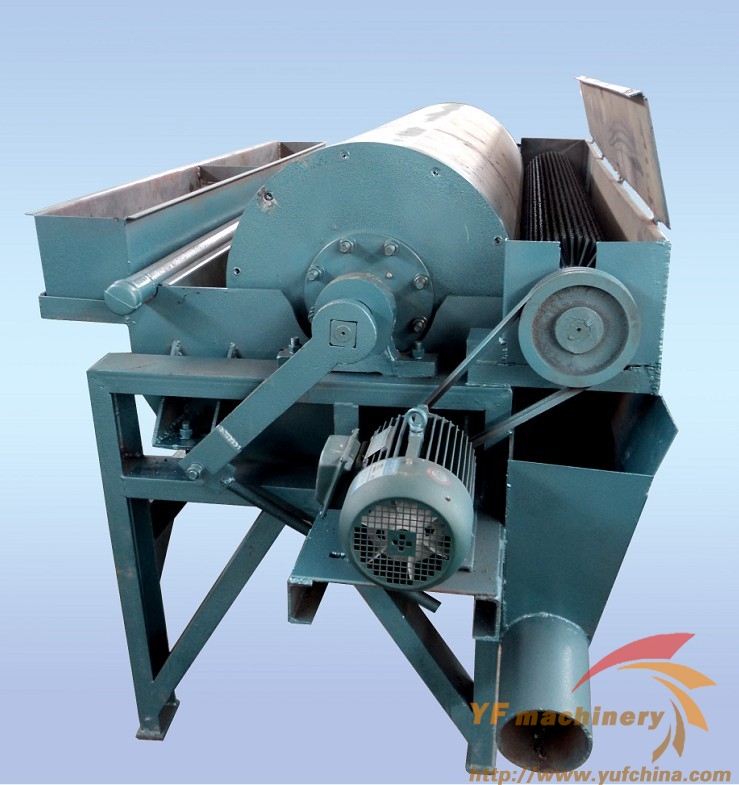

CXJ Two Drum Dry Powder Magnetic Separator
CXJ Drum Dry Powder Magnetic Separator has a unique magnetic circuit design, which is equipment for automatic removing iron in continuity from dry power. The magnetic source is the high-performance magnetic of NdFeB. First, it has strong magnetic field, the rate of removing iron is high. Second, it is maintenance-free, energy conservation, safety and reliability. Third, the feeding quantity is controlled. Therefore, the machine satisfied different particles' needs, and widely used in such different industries as abrasives, refractory, non- metallic mineral, carbon black, grain, feed and chemicals.
CXJ Two Drum Dry Powder Magnetic Separator Technicial Parameters
| Model |
Dimension mm |
Drum Length
mm |
Drum
Diameter
mm |
Magnetic Field
Intensity
Gs |
Drum
Numbers |
Drum Rotate Speed r/min |
Productivity
T/h |
Motor Power
Kw |
Power Voltage |
| CXJ-60-Ⅱ |
1070*925*1240 |
600 |
320 |
First Drum Grate3000 |
2 |
17-28 |
Less2 |
1.5 |
380 |
Second Drum
Grate6000 |
| CXJ-80-Ⅱ |
1420*1220*1570 |
800 |
406 |
First Drum Grate3000 |
2 |
Less2.5 |
1.5 |
| Second DrumGrate6000 |
| CXJ-100-Ⅱ |
1620*1420*1770 |
1000 |
508 |
First DrumGrate3000 |
2 |
Less4 |
2 |
Second Drum
Grate6000 |
CXJ Three Drum Dry Powder Magnetic Separator
CXJ Three Drum Dry Powder Magnetic Separator
Technicial Parameters
| Model |
Dimension mm |
Drum
Length
mm |
Drum Diameter
mm |
Magnetic Field Intensity Gs |
Drum
Numbers |
Drum Rotational Speed
r/min |
Capacity
T/h |
Motor
Power
Kw |
Power Voltage |
| CXJ-60-Ⅱ |
1150*1070*1700 |
600 |
320 |
First Drum Grate2000 |
3 |
17-28 |
Less2.5 |
1.5 |
380 |
Second Drum
Grate4000 |
| Third Drum Grate6000 |
| CXJ-80-Ⅱ |
1770*1260*1570 |
800 |
406 |
First Drum Grate2000 |
3 |
Less3 |
1.75 |
Second Drum
Grate4000 |
| Third Drum Grate6000 |
| CXJ-100-Ⅱ |
1970*1460*2309 |
1000 |
508 |
First Drum Grate2000 |
3 |
Less5.5 |
3 |
Second Drum
Grate4000 |
| Third Drum Grate6000 |
Welcome to Zhengzhou YUFENG Machinery Company.If you want to more information about our dry magnetic separator, Please give us the message, we will reply as soon as possible.
|
