Clay Soil Dryer
Clay Soil Dryer introduction
Clay Soil Dryer also called rotary dryer, which is handling by bringing it into direct contact with a heated gas.

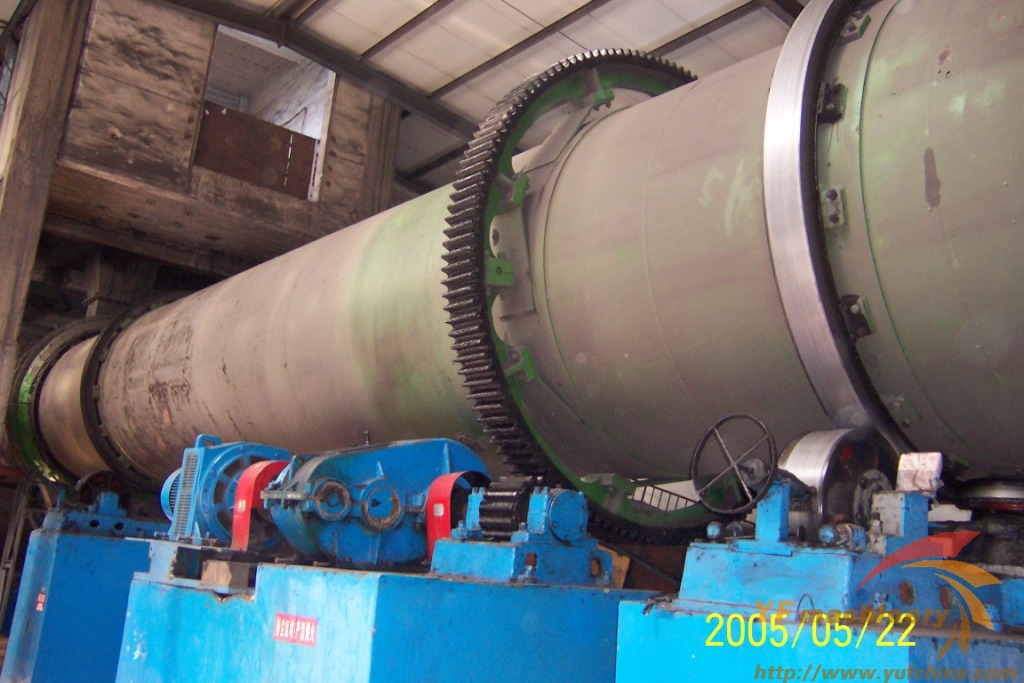

The dryer is made up of a large, rotating cylindrical tube,
Clay Soil Dryer slightly so that the discharge end is
lower than the material feed end in order to convey the material through the dryer under.
Clay Soil Dryer application & composition:
Clay Soil Dryer made by our company can be used in building materials, metallurgy, chemical industry, cement
plant for drying of limestone slag, coal powder, slag, clay stone.

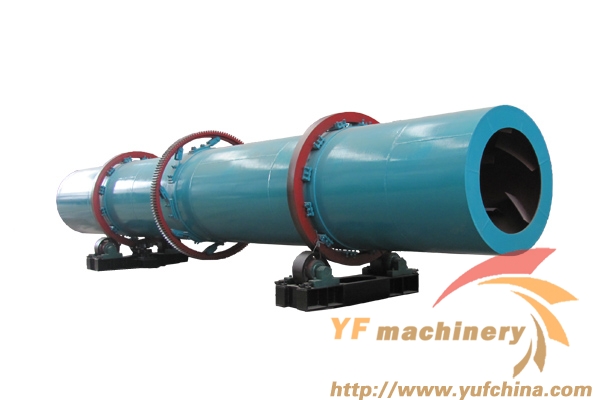

Clay Soil Dryer is formed of rotary body, lifting blade,
driving device, supporting device and sealing ring.
Clay Soil Dryer advantages:
1.reasonable structure
2.high efficiency,
3.low energy consumption
4.convenient transportation.
5.convenient and reliable operation
Performance characteristics of clay soil dryer:
This series
Clay Soil Dryer is used for drying materials with humidity or granularity in the industries of mineral dressing,
building material, metallurgy and chemical. Rotating dryer can be used for drying many kinds of materials and
with convenient and reliable operation; therefore, it has been widely used.
type(mm) |
indiclination(%) |
rotation speed(r/min) |
input tempreture(ºC) |
motor power(kw) |
outpur(t/h) |
weight(t) |
reforance |
Φ600×6000 |
3-5 |
3-8 |
≤700 |
3 |
0.5-1.5 |
2.9 |
|
Φ800×8000 |
3-5 |
3-8 |
≤700 |
4 |
0.8-2.0 |
3.5 |
|
Φ800×10000 |
3-5 |
3-8 |
≤700 |
4 |
0.8-2.5 |
4.5 |
|
Φ1000×10000 |
3-5 |
3-8 |
≤700 |
5.5 |
1.0-3.5 |
5.6 |
|
Φ1200×10000 |
3-5 |
3-8 |
≤700 |
7.5 |
1.8-5 |
14.5 |
|
Φ1200×12000 |
3-5 |
3-8 |
≤700 |
11 |
2-6 |
14.8 |
|
Φ1500×12000 |
3-5 |
2-6 |
≤800 |
15 |
3.5-9 |
17.8 |
|
Φ1800×12000 |
3-5 |
2-6 |
≤800 |
18 |
5-12 |
25 |
|
Φ2200×12000 |
3-5 |
1.5-6 |
≤800 |
18.5 |
6-15 |
33 |
|
Φ2200×18000 |
3-5 |
1.5-6 |
≤800 |
22 |
10-18 |
53.8 |
|
Φ2200×20000 |
3-5 |
1.5-6 |
≤800 |
30 |
12-20 |
56 |
|
Φ2400×20000 |
3-5 |
1.5-5 |
≤800 |
37 |
18-30 |
60 |
|
Φ2800×15000 |
3-5 |
1.5-5 |
≤800 |
40 |
20-35 |
72.5 |
|
Φ2800×18000 |
3-5 |
1.5-5 |
≤800 |
40 |
25-35 |
75 |
|
Φ3000×20000 |
3-5 |
1.5-5 |
≤800 |
55 |
28-40 |
78 |
|
Φ3000×25000 |
3-5 |
1.5-5 |
≤800 |
75 |
32-45 |
104.9 |
|
