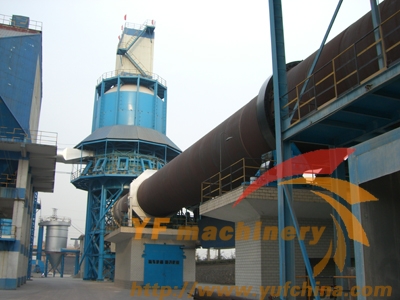

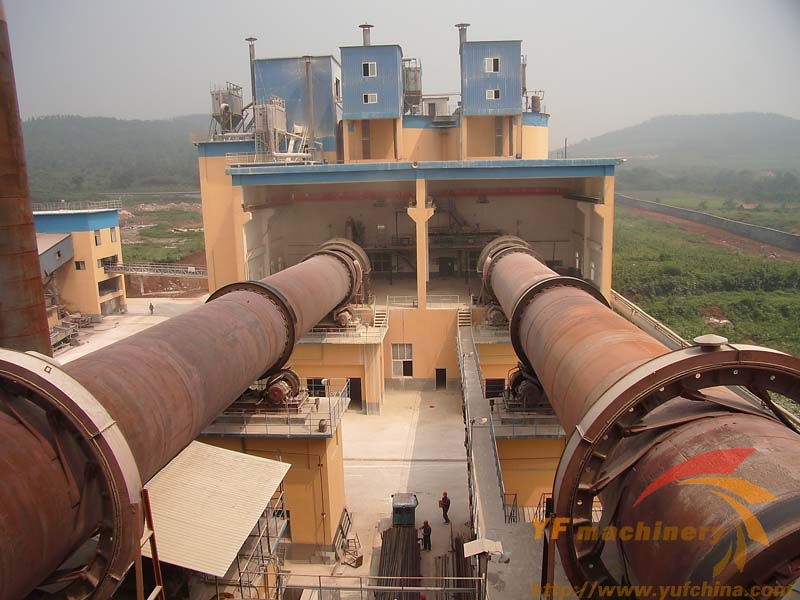

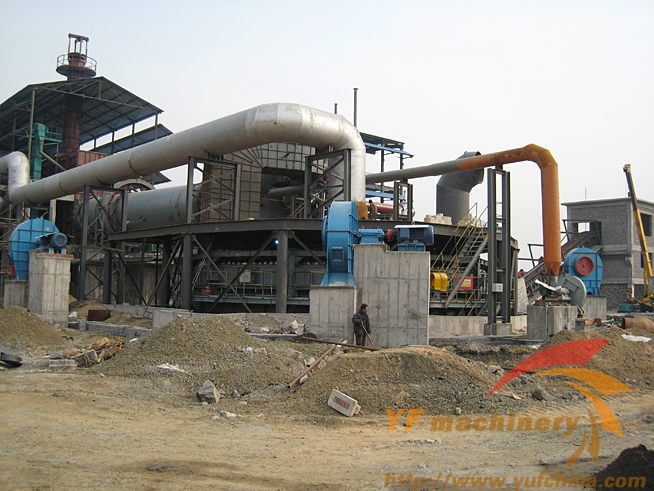

Rotary Kiln
Rotary kiln belongs to building material equipment, which can be divided into cement kiln, metallurgy chemical kiln and lime kiln according to different materials. Cement kiln is used for making of cement clinker and there are dry and wet methods to make cement. metallurgy chemical kiln is used for magnetic roasting of iron ore and oxidizing roasting of chrome and nickel in the steel factory; baking high-alumina mine in the refractory material factory; baking chamotte and alumina in the aluminium factory and baking chrome ore and chrome powder in the chemical plant. Lime kiln is used for baking active lime and dolomite in the steel factory and ferroalloy factory.
Rotary Kiln Product feature:
1. Rotary kiln Support device: advanced shaft structure, automatic temperature measuring device and electrical heating device.
2. Catch wheel: including mechanical wheel and hydraulic pressure
3. Gears: single or double. The rotating speed is controlled by regulating motor, DC motor or variable frequency and speed regulation motor. Be reliable, energy-saving and efficient.
4. Cylinder tyre bolster: lower bolster has three types: fixed, zoom and floating. Its structure is simple, replacement is convenient and it won’t hurt cylinder when it needs a change.
5. Sealing equipment: there are many kinds for choice according to kiln models, including air cylinder edge sealing, spring edge sealing, graphite block sealing and combination for above. The feature is adaptive for cylinder rotating and swing. And sealing effect is very good.
6. Kiln head hood: including stationary type and flexible type.
spec
(m) |
technical parametere |
speed reducer |
motor |
supporting quantity |
rev
（r/min） |
slope
（%） |
output
（t/h） |
type |
type |
power
(KW) |
| Φ1.6ⅹ32 |
0.58～2.85 |
4 |
2 |
ZQ75－50 |
YCT250－4A |
18.5 |
3 |
| Φ1.6/1.9ⅹ36 |
0.53～1.59 |
4 |
2.5～3 |
ZQ110－7 |
YCT250－4B |
22 |
3 |
| Φ1.9ⅹ39 |
0.53～1.59 |
4 |
3～3.4 |
ZQ125－7 |
YCT315－4A |
37 |
3 |
| Φ2.2ⅹ45 |
0.214～1.64 |
3.5 |
4～5 |
main：ZS125－5 |
YCT315－4B |
45 |
3 |
| auxiliary：ZQ40－40 |
Y112M－4 |
4 |
| Φ2.5ⅹ50 |
0.62～1.5 |
3.5 |
5～6 |
main：ZS165－5 |
YCT355－4A |
55 |
3 |
| auxiliary：ZS50－1 |
Y160M－6 |
7.5 |
| Φ2.5ⅹ55 |
0.62～1.5 |
3.5 |
5～6 |
main：ZS165－5 |
YCT355－4A |
55 |
3 |
| auxiliary：ZS50－1 |
Y160M－6 |
7.5 |
| Φ2.8ⅹ55 |
0.62～1.5 |
3.5 |
6～7 |
main：ZS165－6 |
YCT355－4B |
75 |
3 |
| auxiliary：ZS50－1 |
Y160L－6 |
11 |
| Φ3.0ⅹ60 |
0.5～1.5 |
3.5 |
7～9 |
main：ZS165－3 |
ZSN－280－11B |
125 |
4 |
| auxiliary：ZS50－1 |
Y160L－6 |
11 |
| Φ3.2ⅹ64 |
0.4～1.5 |
3.5 |
8～10 |
main：ZL130－16 |
ZSN－280－11B |
190 |
4 |
| auxiliary：ZL50－10 |
Y180L－4 |
22 |
| Φ3.5ⅹ70 |
0.4～1.5 |
3.5 |
12～14 |
main：ZSY500－40 |
ZSN－315－082 |
280 |
4 |
| auxiliary：ZL50－14 |
Y180L－4 |
22 |
| Φ4ⅹ80 |
0.4～1.5 |
3.5 |
16～20 |
main：ZSY630－35.5 |
ZSN－315－12 |
355 |
4 |
| auxiliary：ZSY280－35.5 |
Y200L－4 |
30 |
Welcome to Zhengzhou YUFENG Machinery Company.If you want to more information about our Rotary kiln, Please give us the message, we will reply as soon as possible.
