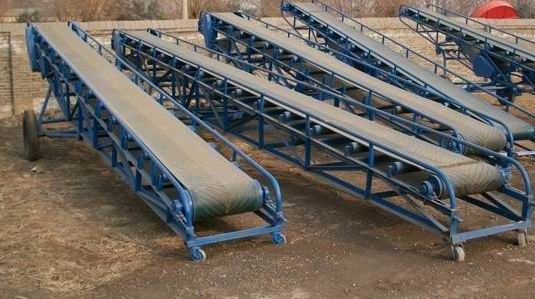

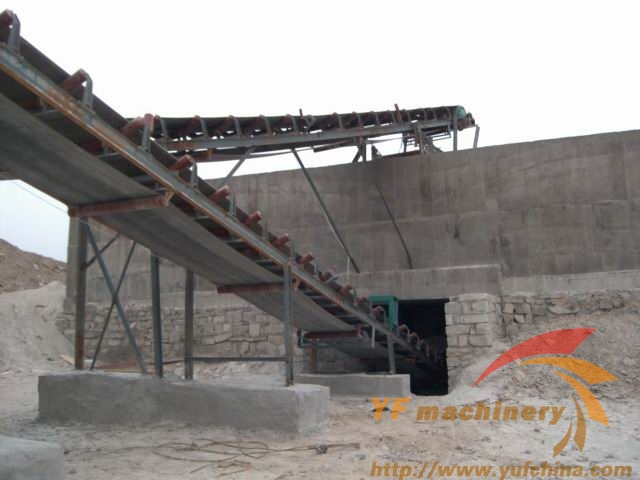

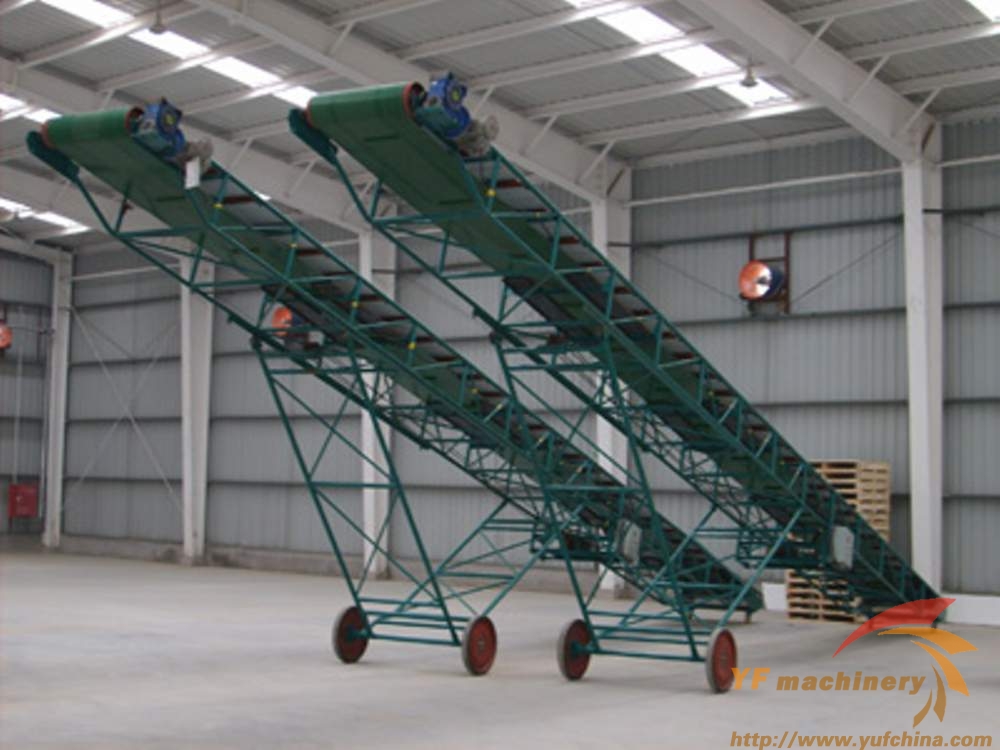

Belt Conveyor
Belt Conveyor is used for transferring material in bulk or container. The Belt Conveyor is widely used in the industry of mining, building materials, metallurgy, coal and so on. Users can not only transport material with one conveyor or several conveyors, but also can transport with a horizontal/slope transfer system that made up by this kind of conveyors and other conveyors so that can meet the request of different working conditions. It can transport materials in large quantity. It is simple in operation, convenient in maintenance, superior quality.
Belt Conveyor Features
1.The belt conveyors made of SJLC(heat and cold resisted material) can be operated in the temperature situation ranging from -20℃ to +40℃. The temperature of transferred material by this belt conveyor should be lower than 50℃.
2. Simple in structure, easy to maintain, long service life, high transfer capacity.
Belt Conveyor Working Principle
Belt conveyor is a kind of machine that to transfer the material continuously. The belt works under the effect of frictional force. When the materials fall down on the conveyor, the roller under the belt will drive the belt forward. In this way, it conveys the material.
TBelt Conveyor echnicial Parameters
Belt Width (mm) |
Belt Length (m)/Power (KW) |
Belt Speed (m/s) |
Capacity (t/h) |
400 |
≤12/1.5 |
12-20//2.2
|
20-25/3
|
0.8-2 |
40-80
|
500 |
≤12/3 |
12-20/4
|
20-30/5.5
|
0.8-2 |
78-191
|
650 |
≤12/4 |
12-20/5.5 |
20-30/7.5
|
0.8-2 |
131-323
|
800 |
≤10/4 |
10-15/5.5 |
15-25/7.5
|
1.0-2 |
278-546
|
1000 |
≤10/5.5 |
10-20/7.5 |
20-25/11
|
1.0-2 |
435-853
|
1200 |
≤10/7.5 |
12-20/11 |
20-25/15 |
1.0-2 |
655-1284 |
Note:actual power will be decided by the complete set. |
Max. angle when working of Belt Conveyor:
Material |
β |
Material |
β |
Material |
β |
Material |
β |
Lump coal |
18° |
0-120mm ore |
18° |
Wet concentrate
(moisture 12%) |
20° |
Salt |
20° |
raw coal |
20° |
0-60mm ore |
20° |
Dry concentrate |
18° |
Moulding sand |
24° |
Coal powder after washing ① |
21° |
40-80mm bituminous shale |
18° |
Limestone after screening |
12° |
Waste sand |
20° |
Hard coke after screening |
17° |
20-40mm bituminous shale |
20° |
dry sand |
15° |
Stone with screening |
18° |
0-25mm hard coke |
18° |
0-200mm bituminous shale |
22° |
Sand mixed with gravel |
18-20° |
cement |
20° |
0-3mm hard coke |
20° |
Dry and loose earth |
20° |
Quarry sand |
20° |
Blocky dry clay |
15-18° |
0-350mm ores② |
16° |
Wet earth |
20-23° |
Wet sand |
23° |
Powder dry clay |
22° |
Note:①Including clean coal,middings coal and waste coal. ②Including ferrous metal, non-ferrous metal, rock, limestone and so on. |
