Vertical Dryer

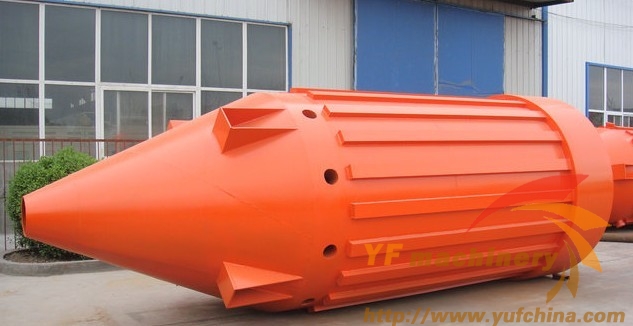

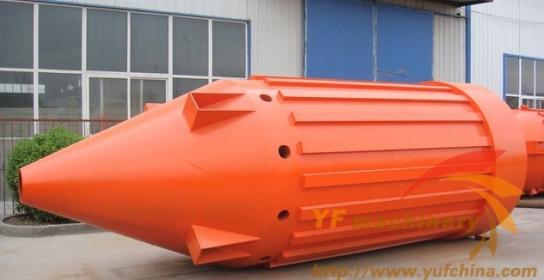

Vertical dryer's structure:
The
vertical dryer adopts vertical equipment and steel structure housing, the lining is equipped with heat preservation material to keep warm, in the inner of the kiln, and multilayer high temperature castings have been used and overlapped. In the higher, middle and lower parts, all relevant components have several groups of vibrate, closure, temperature control and intelligent control systems. Water vapor and smoke collected and removed by the whirlwind dust collector installed in the draught fan.
Vertical Dryer Working Principle:

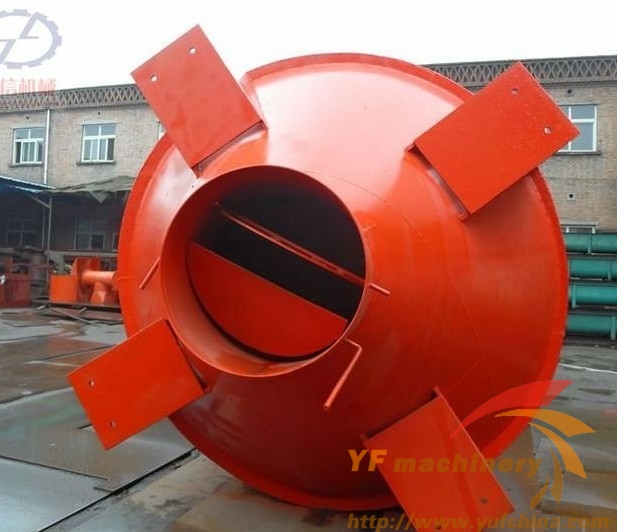

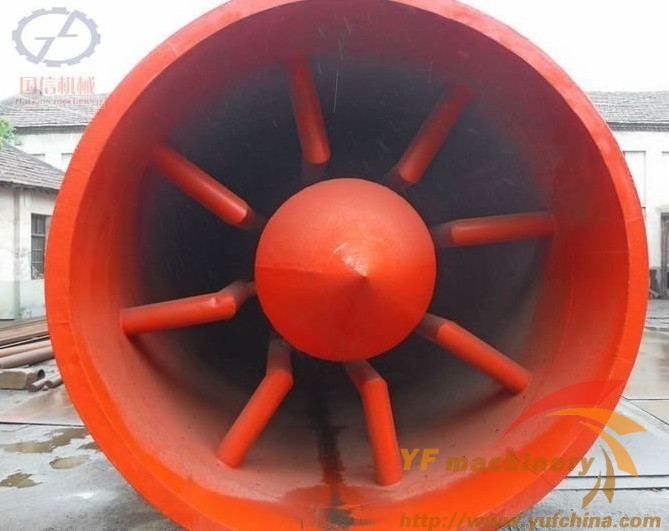

When temperature is showed from 400°C to 500°C by temperature controller on the bottom, materials, whose granularity is not more than 25mm, will be raised to preheating zone by lifter under the instruction of intelligent material level controller; When temperature is showed from 150°C to 250°C by temperature controller on the top, materials will be sent into cross vibration chute by electric shutoff device to take the second preheating. During the vibration-preheating course, materials are dried and loose and evenly distributed into several overlapped distribution cones to take the third drying process till the materials are completely dried and finally discharged.
Vertical dryer's Advantages:
1.)YUFENG
vertical dryer Innovative design: new-style vertical of drying,the material is free dropping, gas material countercurrent operation,which is integrated gathering heat conduction and thermal radiation into a body .Heat efficiency is up to 93%. The whole process is automatic control, easy operation and maintenance.
2.)Less investment: apply small area, saving 80% of the investment, it is especially suitable for the old-line transformation. It can make use of abandoned or idle kiln, mill, tower, library and horizontal dryer, etc. further reducing the investment.
3.)Widely used: drying clay, slag, fly ash, coal, iron can also be used in mineral processing, chemical, foundry and other industries of material drying.
4.)YUFENG
vertical dryer Long life: the internal components used in all heat-resistant alloy, long life, low failure rate.
Vertical Dryer Working Technicial Parameters
| Model |
Output(t/h) |
Drying former moisture |
Afer drying moisture |
Drying time(h) |
Power(kw) |
| LG1800 |
5-10 |
>25% |
1.5-5% |
1.5-2.5 |
15 |
| LG2800 |
10-15 |
>25% |
1.5-5% |
1.5-2.5 |
22 |
| LG3200 |
20-25 |
>25% |
1.5-5% |
1.5-2.5 |
37 |
