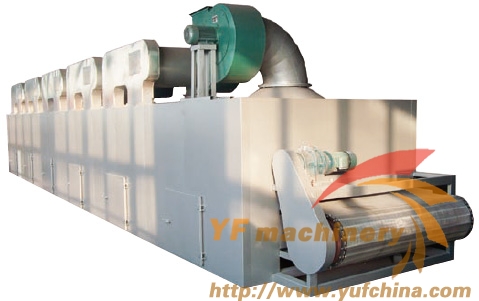

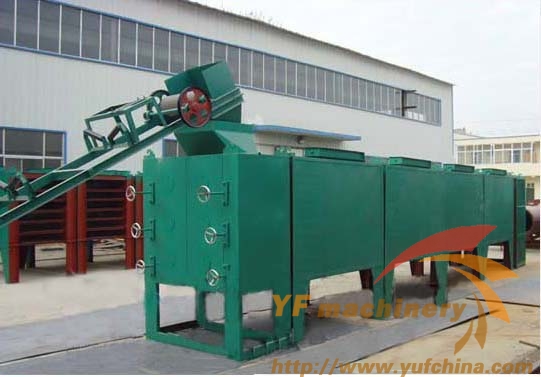

DW Multi-belt Dryer Application
The belt drier is ordinary continuous drying equipment. It is widely used for chemical industry, foodstuff industry,
pharmaceutical industry, construction materials industry, electronics industry and so on.DW Multi-belt DryerEspecially it is suitable for drying raw materials that are good in berathability and have the shape of pieces or strip of granule. It is also
possible the pasted raw material such as filter cake after shaped through granulator or extruder.
DW Multi-belt Dryer Typical Pruducts
Dehydrated vegetable, granule feed, moosodium glutamate, check extraction, organic pigment, synthetic rubber,
propylene fiber, medicine, medical material, small wooden products, plastic products, aging or solidifying for
electronic elements.
Technicial Parameters
Model
DW-1.2-8
DW-1.2-10
DW-1.6-8
DW-1.6-10
DW-2-8
DW-2-10
Number of units
4
5
4
5
4
5
Bandwidth m
1.2
1.6
2
Drying long m
8
10
8
10
8
10
Shop thick material mm
10-80
Temperature oC
50-120
Steam pressure Mpa
0.2-0.5
Steam consumption Kg/h
120-130
150-375
150-375
170-470
180-500
225-600
Heat transfer area m2
272
340
352
440
448
560
Drying time h
0.2-1.2
0.25-1.5
0.2-1.2
0.25-1.5
0.2-1.2
0.2-1.5
Dry Strength Kg水/h
60-160
80-220
75-220
95-250
100-260
120-300
Fan quantity
5
6
5
6
5
6
Total power within the machine Kw
9.9
12.1
9.9
12.1
18.2
22.2
Power equipment KW
11.4
13.6
11.4
13.6
19.7
23.7
Dimensions
long m
9.77
11.77
9.77
11.7
9.77
11.77
Width m
1.5
1.5
2.24
2.24
2.66
2.66
High m
2.83
2.83
2.83
2.83
3.50
3.50
Weight Kg
4800
5780
5400
6550
6350
7800
Welcome to Zhengzhou YUFENG Machinery Company.If you want to more information about our DW Multi-belt Dryer , Please give us the message, we will reply as soon as possible.
