Technical Parameter
Introduction

Technical Parameters of YF-Series Rotary Dryer

Spec./m (Dia.×Length)	Shell Cubage (m³)	Capacity (t/h)	Installation Obliquity (%)	Highest Inlet Air Temperature (℃)	Main Motor (KW)	Weight (t)
Φ1.2×8.0	9.0	1.9 ~ 2.4	3 ~ 5	700 ~ 800	7.5	9
Φ1.2×10	11.3	2.4 ~ 3.0	3 ~ 5	700 ~ 800	7.5	11
Φ1.5×12	21.2	4.5 ~ 5.7	3 ~ 5	700 ~ 800	15	18.5
Φ1.5×14	24.7	5.3 ~ 6.6	3 ~ 5	700 ~ 800	15	19.7
Φ1.5×15	26.5	5.7 ~ 7.1	3 ~ 5	700 ~ 800	15	20.5
Φ1.8×12	30.5	6.5 ~ 8.1	3 ~ 5	700 ~ 800	18.5	21.5
Φ1.8×14	35.6	7.6 ~ 9.5	3 ~ 5	700 ~ 800	18.5	23
Φ2.2×12	45.6	9.7 ~ 12.2	3 ~ 5	700 ~ 800	22	33.5
Φ2.2×14	53.2	11.4 ~ 14.2	3 ~ 5	700 ~ 800	22	36
Φ2.2×16	60.8	13.0 ~ 16.2	3 ~ 5	700 ~ 800	22	38
Φ2.4×14	63.3	13.5 ~ 16.9	3 ~ 5	700 ~ 800	37	45
Φ2.4×18	81.4	17.4 ~ 21.7	3 ~ 5	700 ~ 800	37	49
Φ2.4×20	90.4	19.3 ~ 24.1	3 ~ 5	700 ~ 800	45	54
Φ2.4×22	99.5	21.2 ~ 26.5	3 ~ 5	700 ~ 800	45	58
Φ2.6×24	127.4	27.2 ~ 34.0	3 ~ 5	700 ~ 800	55	73
Φ3.0×20	141.3	30.1 ~ 37.7	3 ~ 5	700 ~ 800	75	85
Φ3.0×25	176.6	37.7 ~ 47.1	3 ~ 5	700 ~ 800	75	95
Φ3.2×25	201	42.9 ~ 53.6	3 ~ 5	700 ~ 800	90	110
Φ3.6×28	285	60.8 ~ 76.0	3 ~ 5	700 ~ 800	160	135

Welcome to Zhengzhou YUFENG Machinery Company.If you want to more information about our Rotary Dryer, Please give us the message, we will reply as soon as possible.

Rotary Dryer

Zhengzhou YUFENG Machinery Company offers all kinds of DRYER, Rotary DRYER, sand DRYER, sawdust DRYER, coal DRYER, wood chips DRYER, gypsum DRYER, limestone DRYER, iron powder DRYER, coconut shell, DRYER, fly ash DRYER, clay DRYER.

If you want to more information about our products, Please give us the message, we will reply as soon as possible.

Rotary Dryer Brief Introduction

The rotary dryer is mainly used in the fields of building materials, mineral processing, metallurgy, chemical industry, etc., it can be used to dry materials with specified moisture and size.

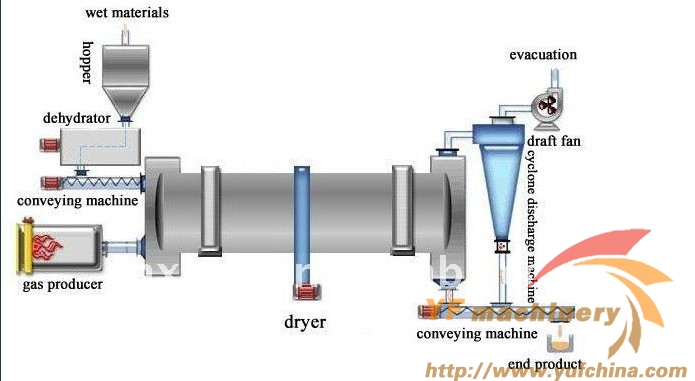

Rotary Dryer Working Principle

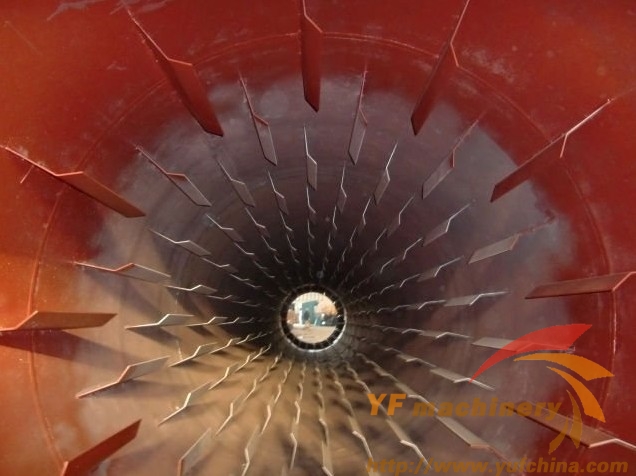

The rotary dryer is a type of industrial dryer employed to reduce or minimize the liquid moisture content of the material it is handling by bringing it into direct contact with a heated gas. The dryer is made up of a large, rotating cylindrical tube, usually supported by concrete columns or steel beams. The dryer slopes slightly so that the discharge end is lower than the material feed end in order to convey the material through the dryer under gravity. Material to be dried enters the dryer, and as the dryer rotates, the material is lifted up by a series of internal fins lining the inner wall of the dryer. When the material gets high enough to roll back off the fins, it falls back down to the bottom of the dryer, passing through the hot gas stream as it falls. This gas stream can either be moving toward the discharge end from the feed end (known as co-current flow), or toward the feed end from the discharge end (known as counter-current flow). The gas stream can be made up of a mixture of air and combustion gases from a burner, in which case the dryer is called a direct heated dryer. Based on the configuration, rotary dryers can be classified as co-current, counter current, direct fired and indirect fired.

Rotary Dryer Unique Features

Efficient drying of materials with high moisture contents.
Handles a wide size range of materials with extended residence times.
Design permits highest possible drying temperatures.
Drying, cooling or calcination.
High thermal efficiency.
