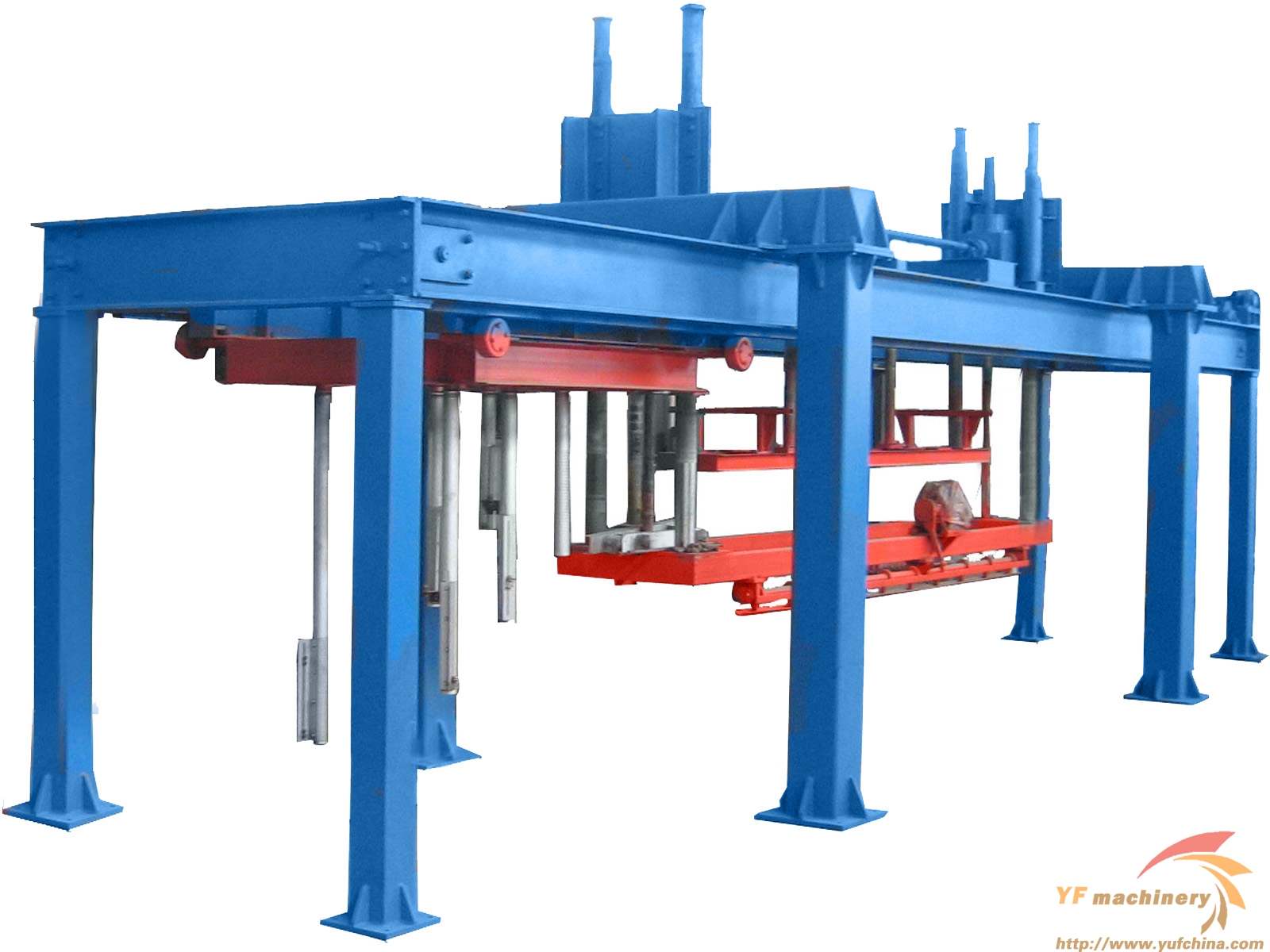

AAC Ground Cutting Machine
AAC Ground Cutting Machine Brief Introduction
AAC Plant Cutting machine is one of the main equipment of the(AAC production line.compact structure,
easy operation,seldom need to repair.The annual output of the AAC production line is over 50000 cubic meters,
cutting machine is a necessary equipment which increases the efficiency and improve the product quality.
Our JQF series of cutting machine can cut the cake in one step by turning it over. Because of its advanced technology,
we just need to swing the cake once . so we can reduce the damage to the cake.
Due to its advantage, our cutting machine is well-received.
After years of technical innovation, we have many different models of concrete cutting machine.
AAC Ground Cutting Machine Working Principle

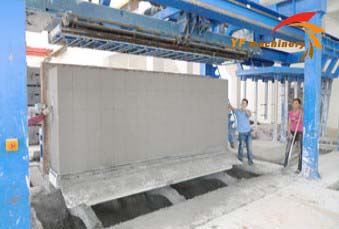

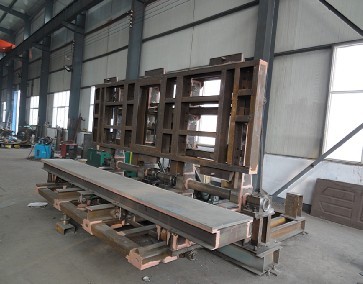

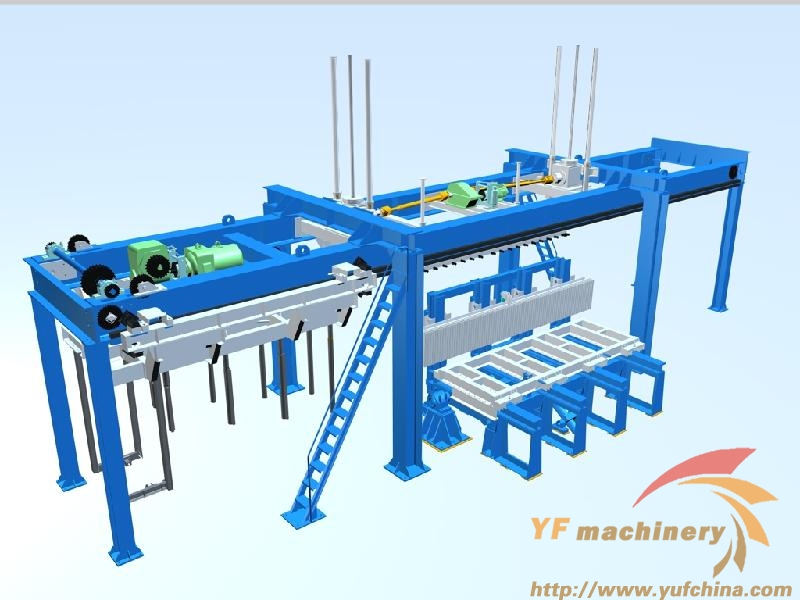

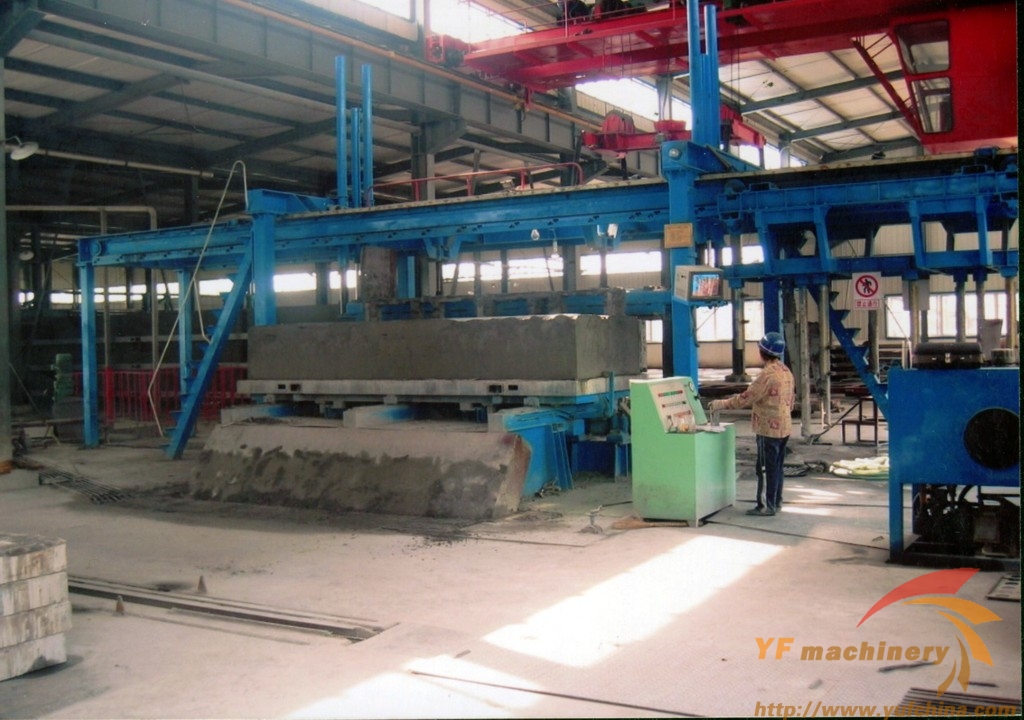

The prestreamed body is lifted by the pointed traveller to the turnover table and stripping the die grid and turned for 90° by hydraulic unit, and then making sixway cutting by the longitudinal and transverse units. After cutting the body is turned for 90° by the hydraulic unit to the original positon, finishing a cutting period. The whole process is done automatically.
AAC Ground Cutting Machine Advantages
(1).the green body of lifting the center of gravity and center of gravity coincides with the semi-spreader, lifting will not make the green body to tip, that is grouped in the green body into the kettle, the steam curing car does not require any auxiliary support device
(2).cutting down through the mixing of 100% waste recycling purposes.
(3). the kettle has a semi-spreader, the product can be directly sub-stack, loading, but also to keep a car direct steam crane to enter online.
(4). the six sides of the green body to cut. Products, precision can reach GB/T11969-1997.
(5). plate production to meet the requirements of precision products up to GB15762-1995.
AAC Ground Cutting Machine Technicial Parameters
|
Item
|
size
|
Size of the cake before cutting (mm)
|
Cutting cycle
|
Capacity
(m³/year)
|
Cutting precision(mm)
|
Power (kw)
|
Outer size of the machine (mm)
|
|
1.
|
4M
|
4050*1240*650
|
6 Minute/Block
|
100,000
|
Six-side cutting <±2
|
34
|
13800*4200*5600
|
|
2.
|
4.2M
|
4250*1240*650
|
6 Minute/Block
|
150,000
|
Six-side cutting <±2
|
34
|
13800*4950*5870
|
|
3.
|
6M
|
6050*1540*650
|
6 Minute/Block
|
200,000
|
Six-side cutting <±2
|
37
|
17500*4600*6000
|
Welcome to Zhengzhou YUFENG Machinery Company.If you want to more information about our AAC production line products, Please give us the message, we will reply as soon as possible.
|
