Autoclave
Autoclave is the key equipment in the production of aerated concrete and autoclaved brick.
Our autoclave is a principle and cylindrical device made of steel, and has the advantages of good quality
and reliable performance.
Autoclave Applications
The Autoclave is applicable for curing the cut body under high temperature and high pressure, and is also
applicable for curing the autoclaved brick under high temperature and high pressure.
Autoclave Technicial Parameters
| No |
Name |
Unit |
Types and Specifications |
| Φ1.65*L |
Φ2.0 *L |
Φ2.4*L |
Φ2.5*L |
Φ2.68*L |
Φ2.85*L |
Φ3.0*L |
Φ3.2*L |
Φ3.5*L |
| 1 |
Inner Diameter |
m |
1.65 |
2 |
2.4 |
2.5 |
2.68 |
2.85 |
3 |
3.2 |
3.5 |
| 2 |
Effective Length |
m |
L: According to user's requirements |
| 3 |
Designed Pressured |
MPa |
1.08 |
1.4 |
1.4 |
1.6 |
1.6 |
1.6 |
1.6 |
1.6 |
1.1 |
| 4 |
Designed Temperature |
℃ |
187 |
197 |
197 |
204 |
204 |
204 |
204 |
204 |
187 |
| 5 |
Working Pressure |
MPa |
1 |
1.3 |
1.3 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1 |
| 6 |
Working Temperature |
℃ |
184 |
195 |
195 |
201 |
201 |
201 |
201 |
201 |
184 |
| 7 |
Medium |
Saturated Steam, Condensed Water |
| 8 |
Rail Distance |
According to user's requirements |
| 9 |
Mode of Opening |
Manual Opening; Automatic Opening |
| 10 |
Overall Dimensions (L*W*H) |
m·m·m |
L+0.96 *2.6*2.6 |
L+1.3 *2.8*3.34 |
L+1.4 *2.84*3.87 |
L+1.5 *3.4*4.0 |
L+1.6 *3.85*4.3 |
L+1.7 *3.5*4.5 |
L+1.9 *3.52*4.8 |
L+2.0 *3.75*5.0 |
L+2.1 *4.13*5.5 |

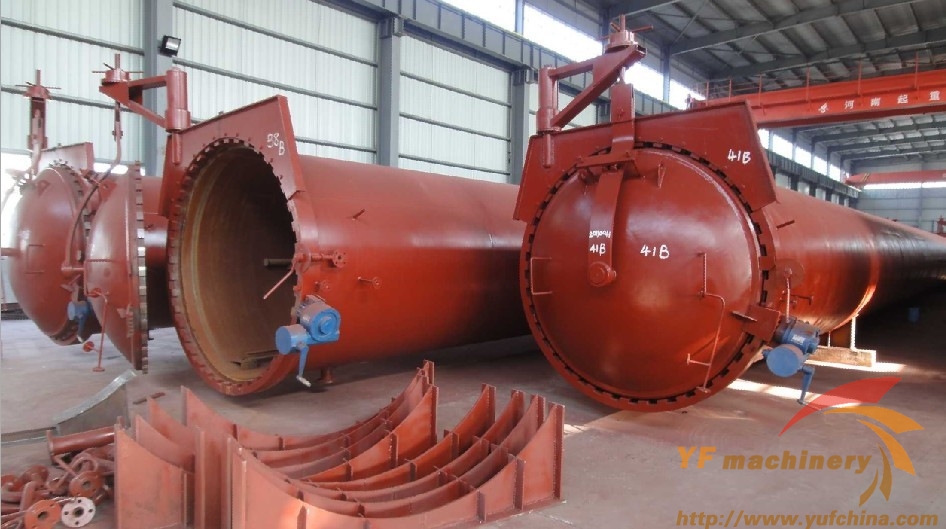

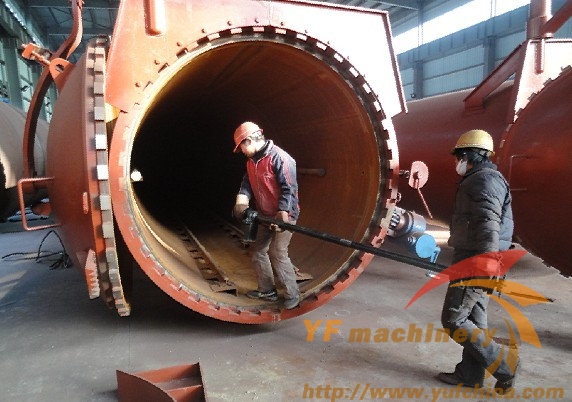

Our Autoclave is a principle and cylindrical device made of steel, the cover is made of a whole piece of pressed Q345R steel board, and the flanges of cover and body adopt a whole piece of forged and processed Q345R steel board. The welding lines of pressed components are subjected to heat treatment and strict nondestructive test.
Welcome to Zhengzhou YUFENG Machinery Company.If you want to more information about our Autoclave, Please give us the message, we will reply as soon as possible.
