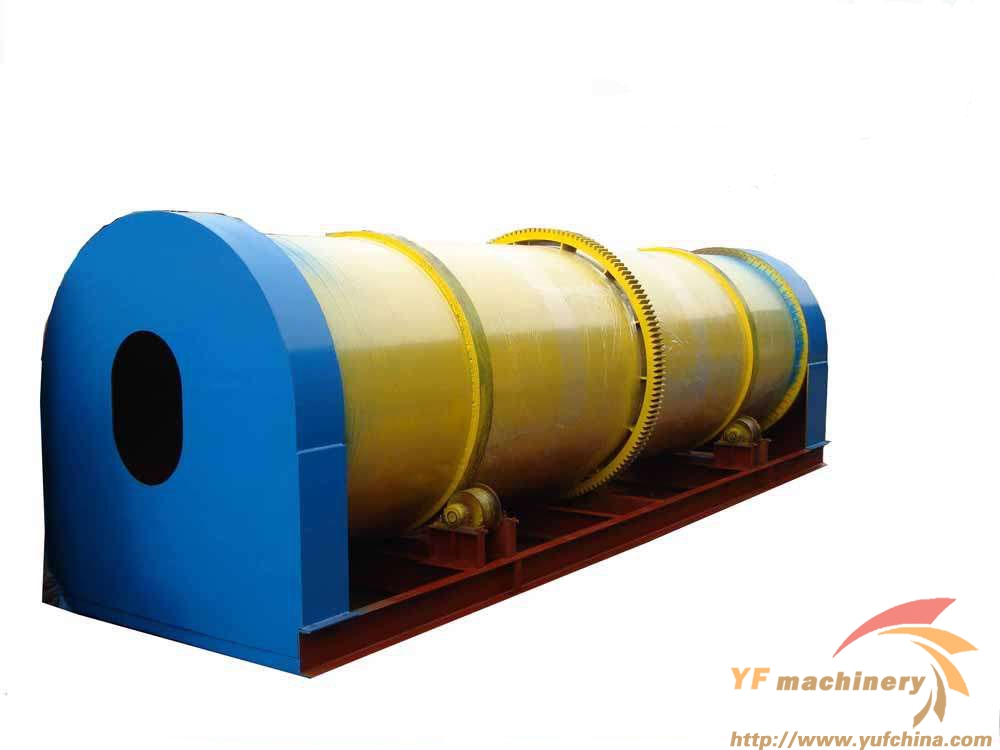

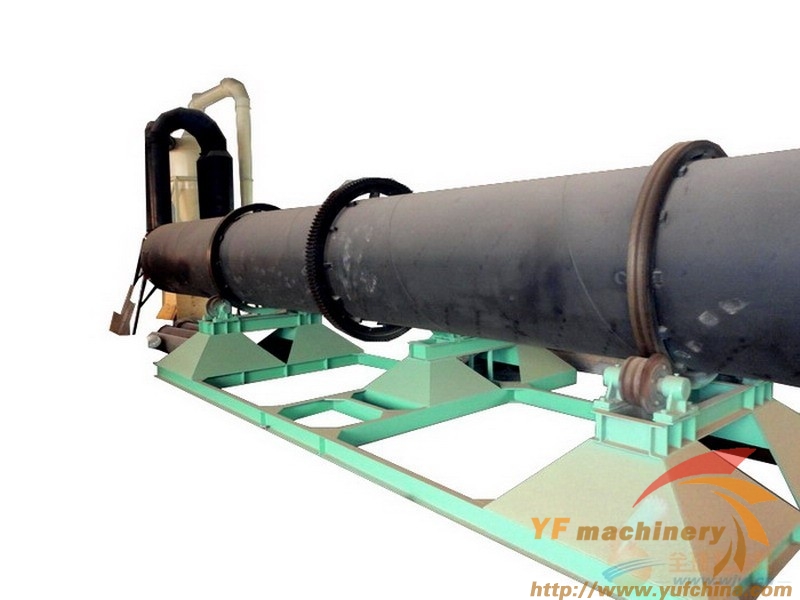

A brief introduction of Cow dung dryer/Chicken manure dryer Livestock manure pollution of the environment becomes more and more serious, but cow dung is rich in nutrients and trace elements that is a kind of good organic fertilizer. Development of cow dung as compound organic fertilizer ,Cow dung dryer / Chicken manure dryer is not only turning waste into wealth, but also reducing environmental pollution and preventing spread of the disease. Cow dung dryer / Chicken manure dryer has good economic and social benefits. Our company produces dung dryer which belongs to compound organic fertilizer production line equipment. The products refined grain size, both as a medium, planting edible fungus Agaricus bisporus, also serve as breeding turtles, fish, snails, chicken, ducks and other feed for sale.
Cow dung dryer / Chicken manure dryer Application and Structural Principle
With the rapid development of the intensive livestock farming in the suburbs of big and medium sized cities,
the environment pollution of the poultry dung becomes more and more serious. However, the poultry dung,
on the other side, is the precious resource of feed and fertilizer, if it can be developed and utilized, it will be very
significant to the development of the livestock and poultry farming and crop cultivation as well as saving grains
and increasing production and income. Therefore, considering the market condition our company develops the
fast drying equipment of poultry dung.
The poultry dung drying equipment can dry the poultry dung with moisture content as high as 70％-80％ directly to 13％ at a time, which is a safe value for store. The whole process is made in a closed system

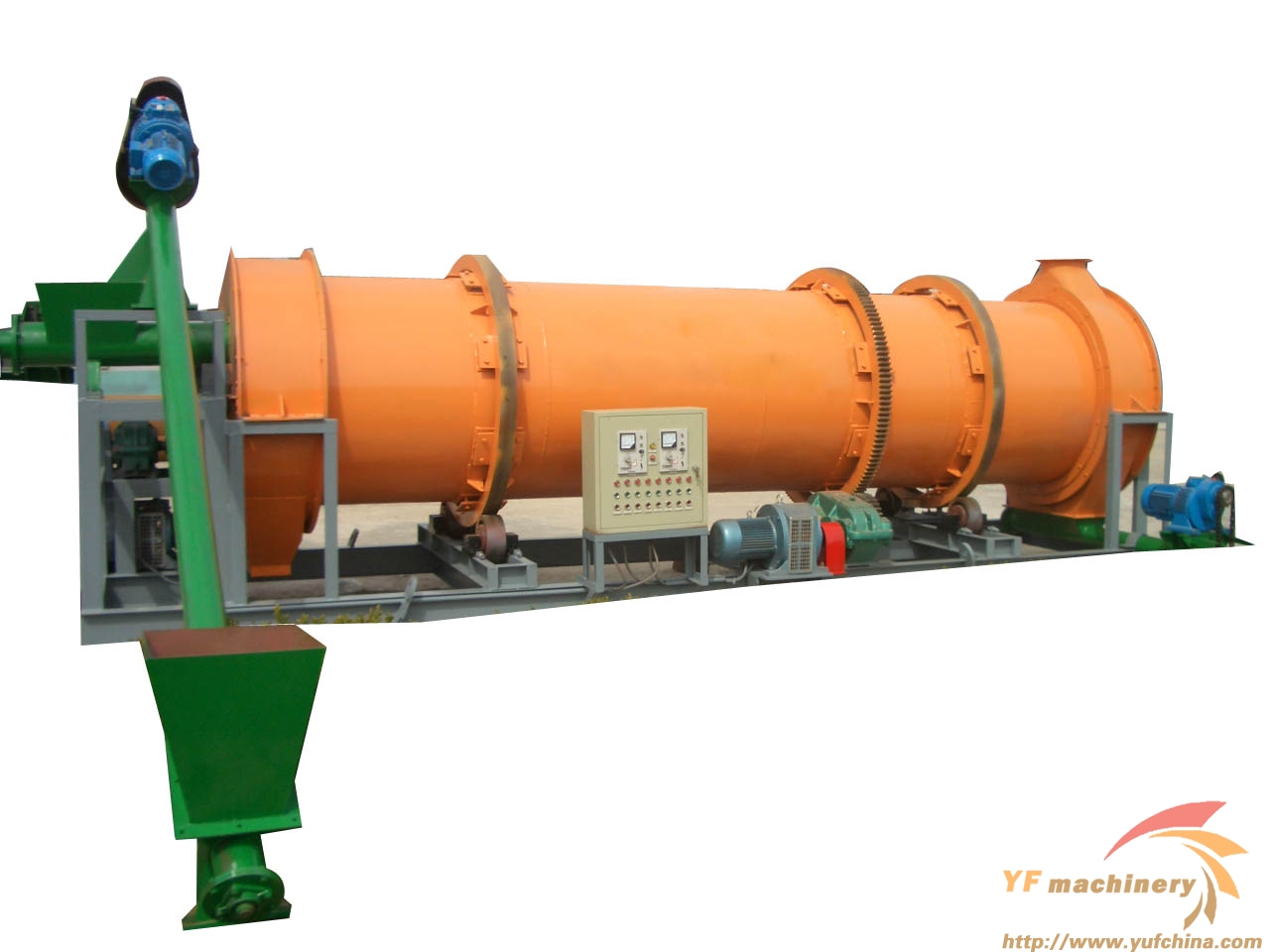

to reduce the environment pollution in the drying process. Cow dung dryer/Chicken manure dryer consists of combustion furnace,
packing auger feeding equipment, drum crushing dryer, packing auger discharging equipment, dust control
unit and fume exhaust system, etc. The flowchart sees the diagram.
Cow dung dryer/Chicken manure dryer Main Characteristics
1.Drum and the crushing equipment are of an adjustable rev, and continuous running.
2.Adopt circulating and sealing drying technology, the energy consumption is greatly reduced.
3.Less breakdown, low maintenance cost and low power loss
4.Realize sterilization and deodorization in process of drying.
Model
(mm)
Speed (r/min)
Gradient (%)
Intake air temperature (℃)
Capacity (t/h)
Weight (t)
GZΦ800*8000
3.8
3-5
≤700
0.8-20
3.5
GZΦ1000*10000
3.8
3-5
≤700
1.0-3.5
5.6
GZΦ1200*10000
3
3-5
≤700
1.8-5
14.5
GZΦ1500*14000
2.08
3-5
≤800
3.3-7.5
17.8
GZΦ1800*14000
2.08
3-5
≤800
5-9
22
GZΦ2200*16000
4.7
3-5
≤700
6-12
36
GZΦ2400*18000
4
3-5
≤800
10-15
52
