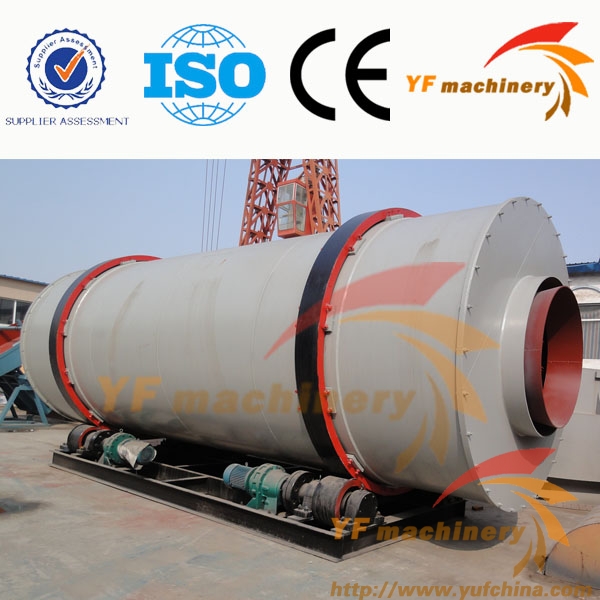

Three Cylinder Dryer
Three Cylinder Dryer Application:
Three drum dryer used to drying humidity particle materials, such as yellow sand used by industry, variety of snad which used in foundry industry, blast furnace slag which used in cement industry of building materials,chemical, food, compound fertilizer,copra,etc. Three Cylinder Dryer Small particle size aclay. According to requirments of the water in the products after dryer. The water content 1-0.5% or less can be achieved after process.
Three Cylinder Dryer Advantages:
1.Three drum dryer use telescope-feed structure, dry the material quickly.
2.Simple design, self-insulation, improve the heat efficiency to exceed 80%.
3.Structure delicate, stable operation.
4.gooddryingperformance, coal consumption <8kg when drying 1 ton material.
5.The fuel can be coal, oil, natural gas etc, dry mass, granule and powder material.
6.Reduce land area for 50% compared to single drum rotary dryer, so construction investment is saved 50%power consumption saved 60%.
7.Finished product moisture can be adjusted depends on requirement of client.
8.Lower outlet tempreture, loonger dust removal using life.
9.Drive by tug not gear.
10.Finished product tempreture lower than 60°C, packing can be done continuously.
Three Cylinder Dryer Technicial Parameters
| Specification |
φ2.0×6m |
φ2.5×6.5m |
φ2.7×7m |
φ3×7m |
φ3.2×7m |
φ3.6×8m |
φ4.2×8.5m |
| Diameter(m) |
2.0 |
2.5 |
2.7 |
3 |
3.2 |
3.6 |
4.2 |
| Length(m) |
6 |
6.5 |
7 |
7 |
7 |
8 |
8.5 |
| Shell volume (m3) |
18.84 |
31.89 |
40.5 |
49.46 |
56.26 |
81.38 |
118 |
| Shell rotary speed(rpm) |
3-10 |
3-10 |
3-10 |
3-10 |
3-10 |
3-10 |
3-10 |
| Material stay time (min) |
12-30 |
12-30 |
12-30 |
12-30 |
12-30 |
12-30 |
12-30 |
| Material moisture (%) |
6-25 |
6-25 |
6-25 |
6-25 |
6-25 |
6-25 |
6-25 |
| Mafter moisture after drying(%) |
≤1 |
≤1 |
≤1 |
≤1 |
≤1 |
≤1 |
≤1 |
| Max inlet temperature (℃) |
750-900℃ |
750-900℃ |
750-900℃ |
750-900℃ |
750-900℃ |
750-900℃ |
750-900℃ |
| Production capacity (T/H) |
Ore slag |
20-25 |
25-30 |
30-35 |
35-10 |
40-45 |
50-65 |
70-85 |
| Flyash |
10-17 |
17-21 |
20-25 |
23-27 |
25-30 |
30-45 |
45-63 |
| Sand |
20-27 |
25-40 |
27-45 |
30-45 |
35-50 |
55-75 |
75-99 |
| Motor model |
Yr160m-4 |
Yr132m-4E |
Yr160m-4 |
Yr160m-4 |
Yr132m-5E |
Yr160m-4E |
Yr160m-4E |
| Motor power (kw) |
7.5×2 |
11×2 |
7.5×4 |
7.5×4 |
11×4 |
15×4 |
18.5×4 |
| Speed reducer model |
XWD-6 |
XWD-6 |
XWD-6 |
XWD-6 |
XWD-6 |
XWD-8 |
XWD-8 |
| Speed ratio(I) |
17-29 |
17-29 |
17-29 |
17-29 |
17-29 |
17-29 |
17-29 |
| Weight (T) |
25 |
32 |
35 |
38 |
43 |
57 |
77 |
